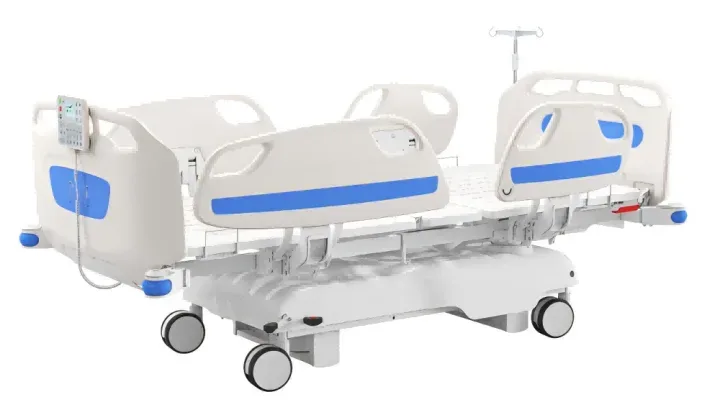

D7d8y-CPR-CZ Multifunctional Electric Bed
Brand: Saikang Medical | Category: Medical Equipment
A multifunctional electric bed built on a low carbon square steel tube frame with a plastic steel hydraulic bed surface, offering forward, reverse and lateral tilt in addition to the usual backrest and thigh rest movements. The backrest carries a CPR quick release and an automatic regression function for pressure relief. Removable PP headboard and footboard in the D17 style are fitted, along with four piece foldable PP side rails carrying angle indicators.
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| Dimensions | 2290×1050×550–950mm ±10mm |
| Backrest up | 75° ±10° |
| Thigh rest up | 35° ±10° |
| Forward tilt | 15° ±2° |
| Reverse tilt | 15° ±2° |
| Left/right lateral tilt | 17° ±2° |
| Overall height adjustment | 550–950mm ±10mm |
Selected values from Saikang's exact-model product page. Confirm the quoted configuration, accessories and current manufacturer documentation before procurement; listed tolerances and operating conditions apply. Checked 2026-09-29.
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Care setting, patient needs and model-specific safe working load
- Required movements, mattress/platform dimensions, rails and accessories
- Ward access, cleaning, electrical requirements and maintenance support
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Clinical, training or facility application
- Required configuration, accessories and existing equipment
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Saikang Medical equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
