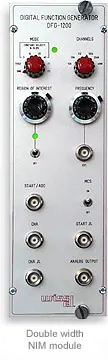

DFG-1200 Digital Function Generator
Brand: WissEl | Category: Nanotechnology
The top digital function generator in the WissEl range. In addition to the standard waveforms it provides a region of interest waveform that can be varied continuously from constant velocity to constant acceleration, concentrating counting time on the lines of interest.
Technical Specifications
| Parameter | Value |
|---|---|
| Waveforms | sine, triangle, constant velocity with 5, 10, 20 and 40 per cent slopes |
| Specification | Region of interest waveform, continuously adjustable |
| Specification | Two further individual waveforms optionally available |
| Analogue output | 20 Vpp into 600 ohm |
| Channel advance and start pulses | approximately 5 V, 1 us, 50 ohm |
| External frequency control input | 0 to 10 Hz |
