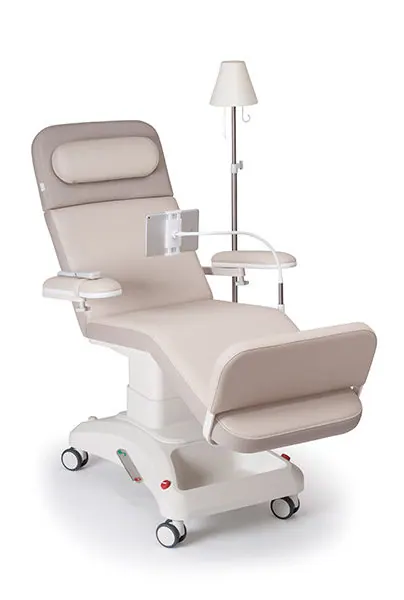

Diacare-3
Brand: Digiterm | Category: Medical Equipment
Therapy chair designed for the needs of high-end medical clinics, with a composite plastic underframe that is self-supporting without steel components to minimise the risk of corrosion. Four motors come as standard for backrest, seat tilt, legrest and seat height, with a 200 kg maximum patient load.
Technical Specifications
| Parameter | Value |
|---|---|
| Seat height adjustment | 55-77 cm |
| Backrest adjusting range | 80° (-13° in TRB position) |
| Seat tilt adjustment | 20° |
| Legrest adjustment | 30° |
| Footrest adjustment | 20 cm (motorised) |
| Dimensions in seat position | L 142 x W 92 |
| Size of upholstery | L 220 x W 60 x H 9.5 cm |
| Armrest size | L 57 x W15 cm |
| Castors size | 4x diameter 10 cm twin wheel castors for central operating brake |
| Maximum load | 200 kg weight capacity |
| Power supply | 100 – 240 V, 50/60 Hz, IPX6 |
| Frame colour | RAL9001 or RAL7037 grey |
| Applied directive and standards | 2017/745 (MDR) and harmonized standards |
Published manufacturer data for the listed model or variants. Confirm the exact configuration, accessories and test conditions in the quotation. Checked 2026-09-29.
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Treatment workflow, patient access and rated patient load
- Seat height, back/leg adjustment, positioning and required accessories
- Upholstery cleaning, power/battery arrangements and service requirements
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Clinical, training or facility application
- Required configuration, accessories and existing equipment
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Digiterm equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
