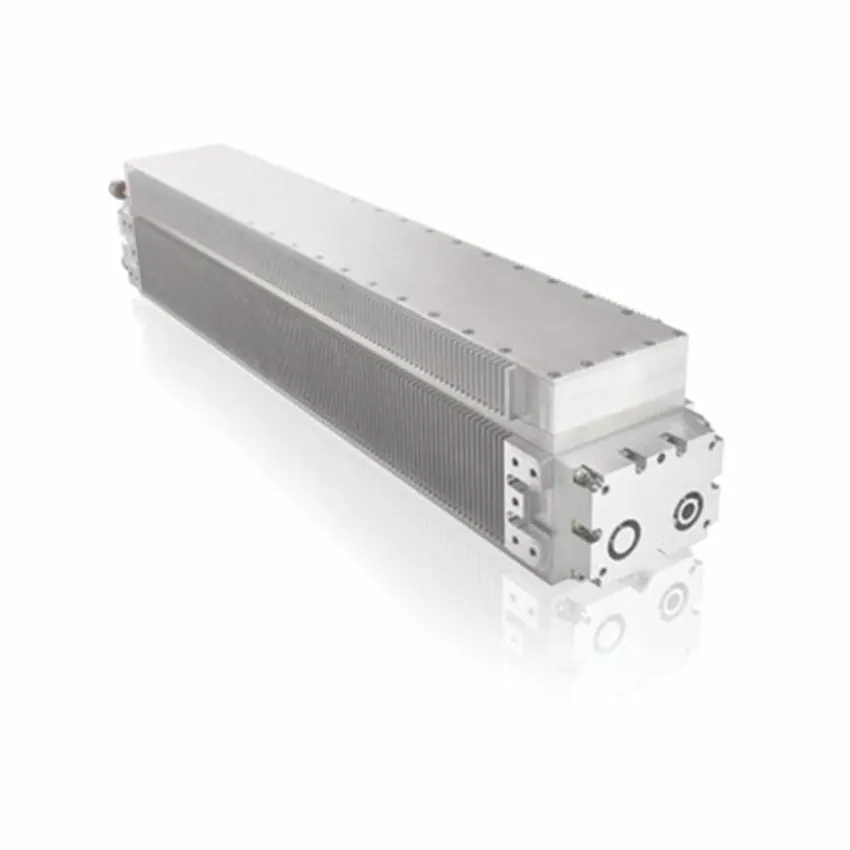

DIAMOND 5 Micron CO Laser
Brand: Coherent | Category: Scientific & Laboratory Equipment
The DIAMOND 5 Micron CO laser is a carbon monoxide laser built on Coherent CO2 slab technology. Its 5.5 um output improves processing of some plastic films, polymers, water, dielectrics and copper oxides, and allows smaller focused spot sizes than a CO2 laser.
Technical Specifications
| Parameter | Value |
|---|---|
| Wavelength | 5.5 um |
| Output power | 40 W |
| Power range | 5 to 40 W |
| Beam size | 1.9 +/-0.2 mm |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Coherent equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
