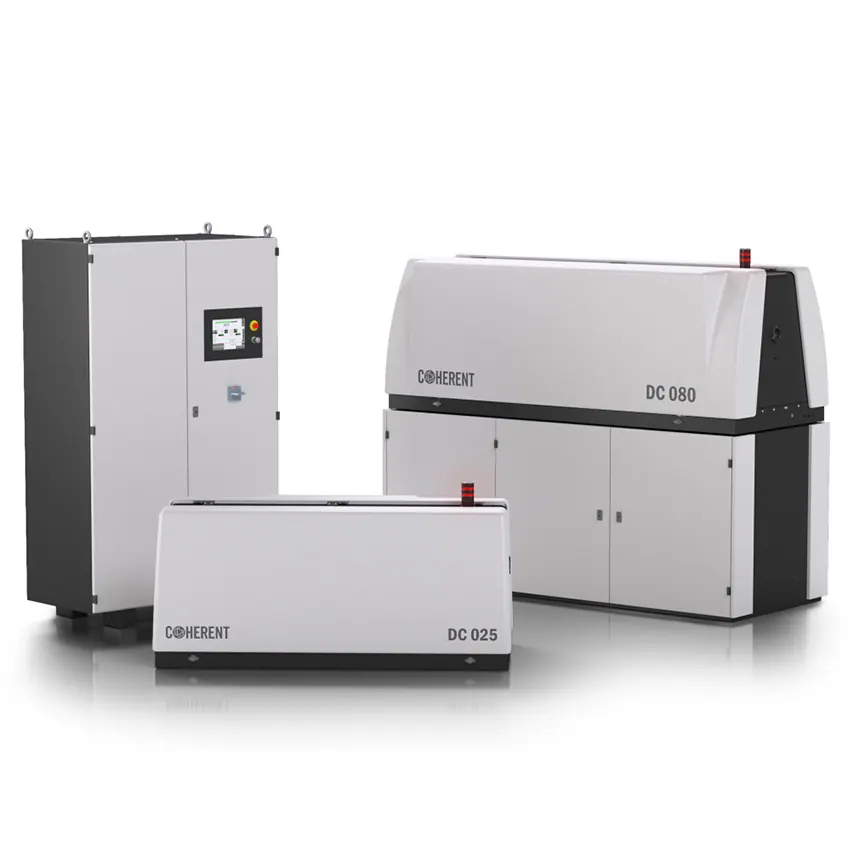

DC Series
Brand: Coherent | Category: Scientific & Laboratory Equipment
DC Series are diffusion cooled CO2 slab lasers from 1 kW to 8 kW at 10.6 um, used for cutting, welding and surface treatment of metals, plastics and organics. Diffusion cooling gives lower gas consumption than fast flow designs.
Technical Specifications
| Parameter | Value |
|---|---|
| Models | DC 010 to DC 080, output power 1.0 kW to 8.0 kW |
| Wavelength | 10.6 um |
| Power range | 10 to 100 % (1 to 4 kW), 20 to 100 % (5 and 6 kW), 15 to 100 % (8 kW) |
| Repetition rate | CW and 2 to 5000 Hz (1 to 4 kW), CW and 2 to 100 Hz (5 kW and above) |
| Specification | Available as a compact version, separate laser head and controller, or OEM integration package |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Coherent equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
Back to Scientific & Laboratory Equipment
More from Laser Systems
- DIAMOND 5 Micron CO Laser
The DIAMOND 5 Micron CO laser is a carbon monoxide laser built on Coherent CO2 slab technology. Its 5.5 um output improves processing of some plastic films, polymers, water, dielectrics and copper oxides, and allows smaller focused spot sizes than a CO2 laser.
- HighLight Fiber Laser
HighLight FL are industrial multi-kilowatt fibre lasers for welding, with detachable process fibres for operational flexibility. A multi-stage back reflection immunity system allows safe processing of highly reflective materials such as brass, copper and aluminium.
- DIAMOND C/Cx Series
DIAMOND C and Cx are low power sealed CO2 lasers below 150 W for cutting, slitting, engraving, scoring and marking wood, cloth, leather, paper, films, plastics, die boards and glass. Several wavelengths and pulse control options are offered for OEM use.
