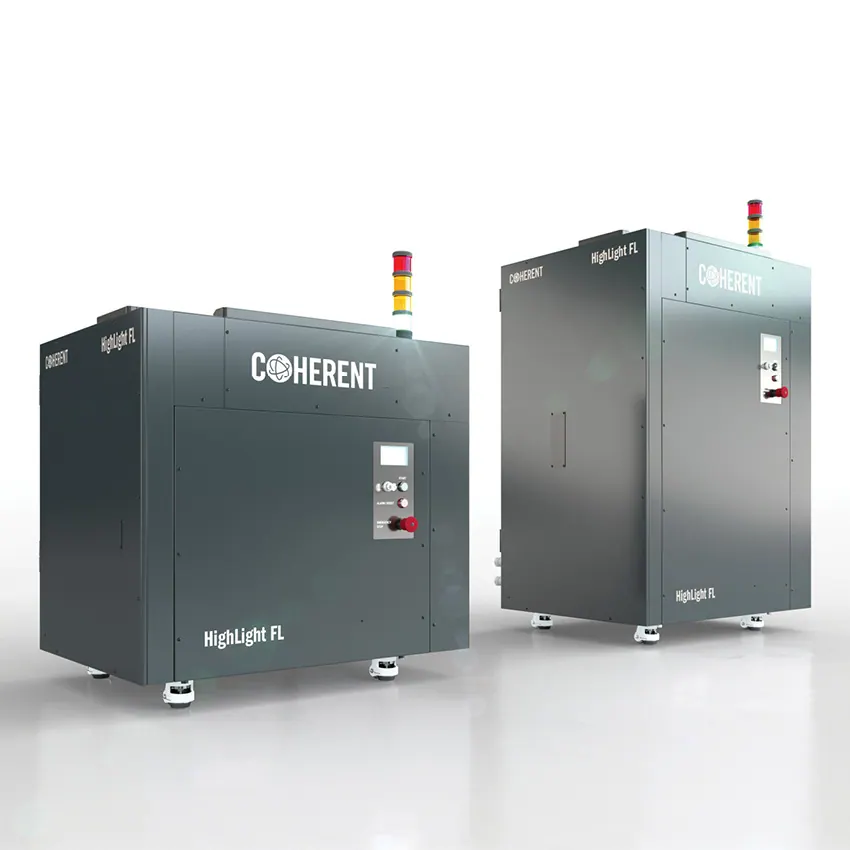

HighLight Fiber Laser
Brand: Coherent | Category: Scientific & Laboratory Equipment
HighLight FL are industrial multi-kilowatt fibre lasers for welding, with detachable process fibres for operational flexibility. A multi-stage back reflection immunity system allows safe processing of highly reflective materials such as brass, copper and aluminium.
Technical Specifications
| Parameter | Value |
|---|---|
| Standard models | HighLight FL1000 to FL10000, 1 kW to 10 kW, multi-mode |
| Compact single-mode models | FL1000CSM to FL2500CSM, 1 kW to 2.5 kW |
| Compact multi-mode models | FL1000C to FL10000C, 1 kW to 10 kW |
| Standard dimensions | 794 x 1040 x 1067 mm up to 6 kW, 794 x 1040 x 1565 mm from 7.5 kW |
| Specification | Fiber-Fiber-Switch option multiplexes output into four separate process fibers |
| Specification | FFC/FFS supported on standard models |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Coherent equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
