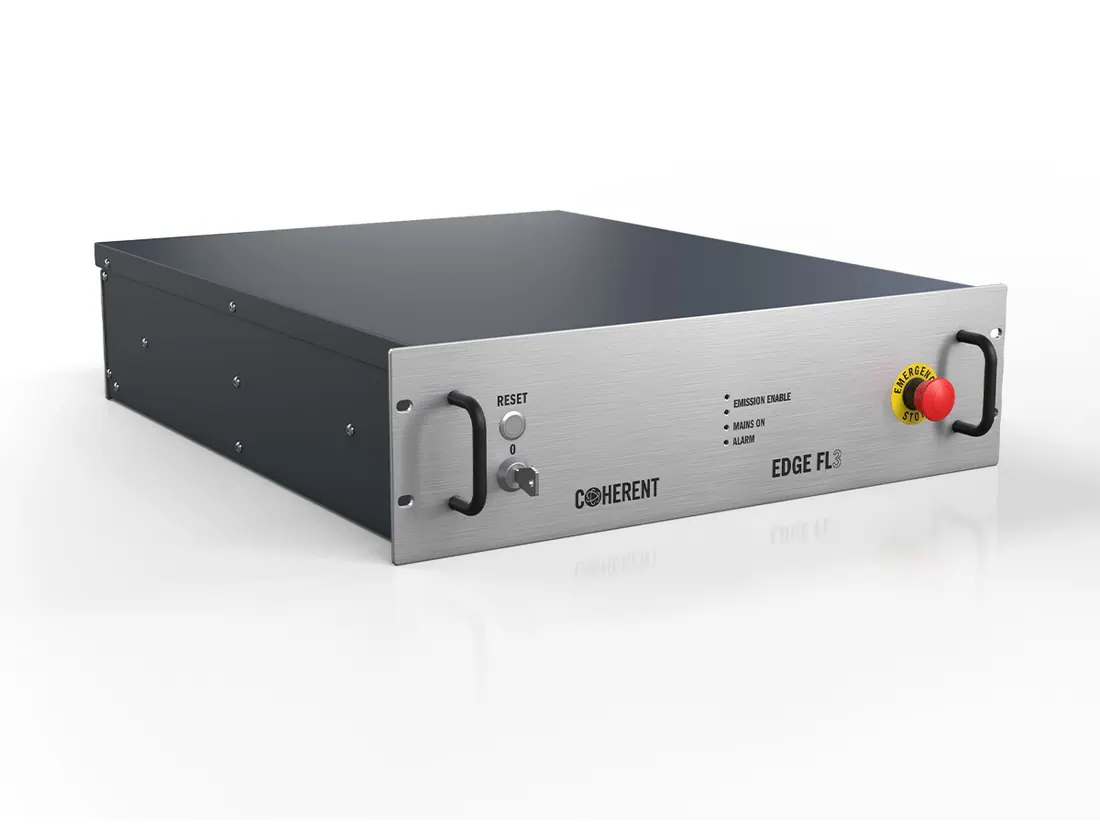

Edge Fiber Laser
Brand: Coherent | Category: Scientific & Laboratory Equipment
EDGE FL are multi-kilowatt fibre lasers for metal cutting, offered from 1.5 kW to 30 kW in rack mount and cabinet versions. They pair with Coherent CUT process heads and ship with a 25 m process fibre.
Technical Specifications
| Parameter | Value |
|---|---|
| EDGE FL1.5 and FL3 | 1.5 kW and 3 kW, BPP 1.5 at 50 um, 25 m 50 um core fiber |
| EDGE FL6, FL9 and FL12 | 6, 9 and 12 kW, BPP <4 at 100 um, 25 m 100 um core fiber |
| EDGE FL15 and FL20 | 15 kW and 20 kW, BPP <4 at 100 um |
| EDGE FL30 | 30 kW, BPP <4 at 100 um |
| Dimensions | 482.6 x 547 x 130 mm (1.5 and 3 kW), 942 x 518 x 899 mm (6 to 12 kW), 942 x 518 x 1292 mm (15 and 20 kW) |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Coherent equipment requirements in Bangladesh.
