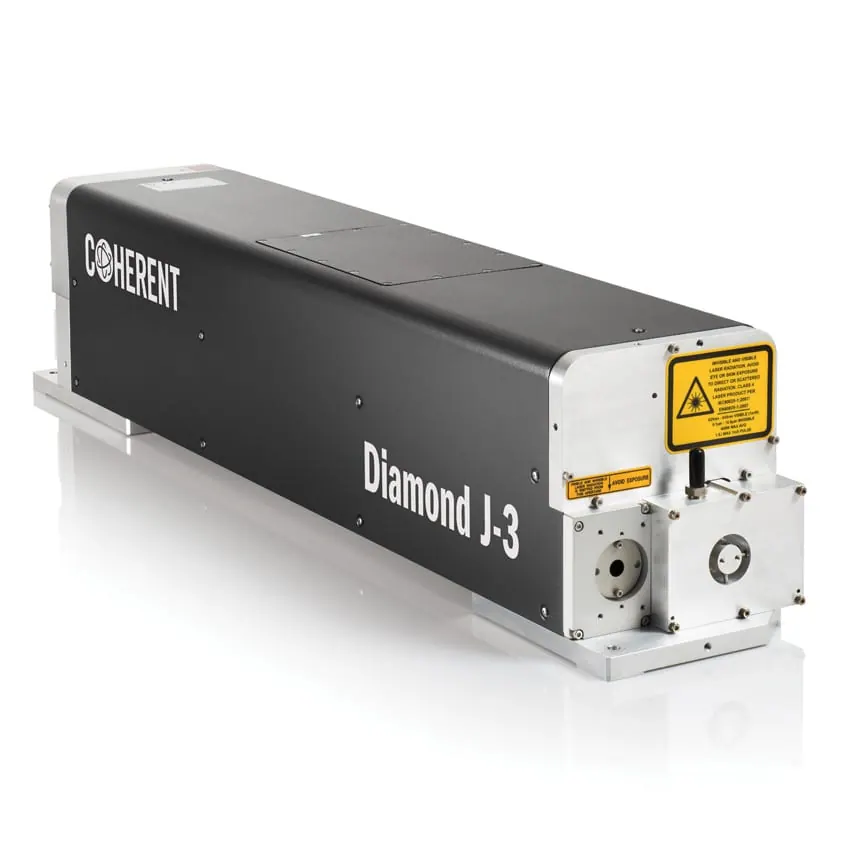

DIAMOND J-Series
Brand: Coherent | Category: Scientific & Laboratory Equipment
DIAMOND J-Series are compact sealed CO2 lasers from 150 W to 500 W with near square wave pulses. They cut, drill, engrave, scribe and mark plastics, metals, composites, PCBs, flex circuits, wood, die boards, paper and cardboard.
Technical Specifications
| Parameter | Value |
|---|---|
| DIAMOND J-2 | 150 to 180 W average, >=400 to >=450 W peak, 198.1 x 227.6 mm, 830.5 mm long |
| DIAMOND J-3 | 225 to 250 W average, >=750 W peak, 1064.1 mm long |
| DIAMOND J-5 | 400 W at 9.4 um and 450 W at 10.6 um, 1700 to 1800 W peak, 1225 mm long |
| DIAMOND J-6-10.6 | 500 W average, 1200 W peak |
| Wavelength options | 9.4, 10.2 and 10.6 um |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Coherent equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
