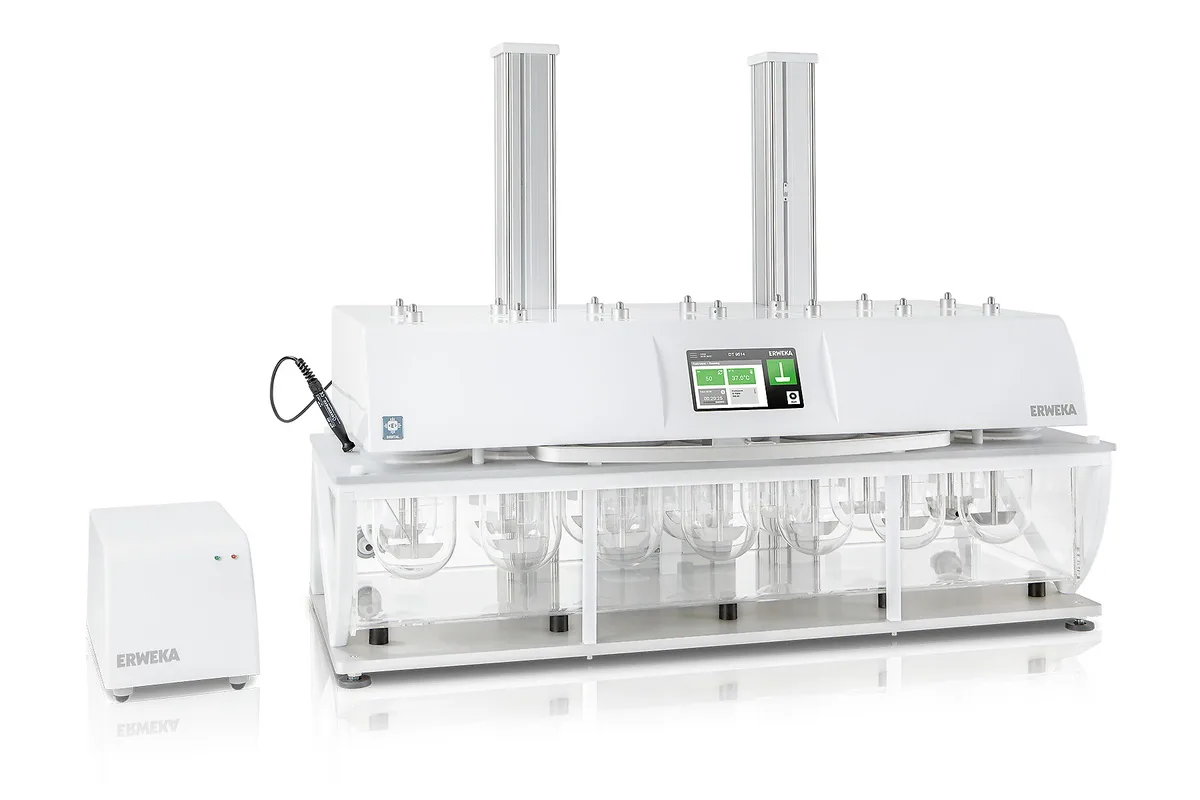

Digital Dissolution Tester DT 9510 Series (DT 9512, DT 9513, DT 9514)
Brand: Erweka | Category: Scientific & Laboratory Equipment
Erweka describe the DT 9510 series as the big brother of the DT 950. It is driven by the same integrated PC, and its up to 14 test stations run from a single powerful motor while the large water bath holds temperature steady through the thermal inertia of the water. That allows two batches of samples to be tested in parallel under exactly the same conditions, 100 % USP / EP compliant. The optional AirLift system raises and lowers the dissolution head at the press of two buttons, with a two hand safety arrangement that stops the movement as soon as either button is released. TestAssist and automatic tablet drop are carried over from the smaller model.
Technical Specifications
| Parameter | Value |
|---|---|
| Weight | 110 kg |
| Dimensions (H x W x D) | 850 x 1062 x 650 mm |
| Voltage | 115/230 V; 50/60 Hz |
| Speed | 20-250 U/min |
| Vessel volume | 400 ml / 1000 ml / 2000 ml |
| Interfaces | 1x RS-232, 2x USB, 2x Ethernet/RJ45 |
| Test stations (DT 9512) | 12 in 2 rows |
| Test stations (DT 9513) | 13 in 2 rows |
| Test stations (DT 9514) | 14 in 2 rows |
| USP methods | USP 1 / USP 2 / USP 5 / USP 6 |
| Fuses | 2 A |
| Protection class | I/EN 61140 |
| Protection type | IP 21/IEC 529 |
| Operation | Touchscreen 7", 800x480 Pixel |
| Sampling positions | High-head / Low-head / Cleaning mode |
| Ambient temperature during operation | +10 °C to +30 °C (ambient temperature min. -5 °C below set temperature) |
| Storage & Transport temp. | +5 °C to +40 °C |
| Relative humidity | 25-80 % non condensing |
Published manufacturer data for the listed model or variants. Confirm the exact configuration, accessories and test conditions in the quotation. Checked 2026-09-29.
