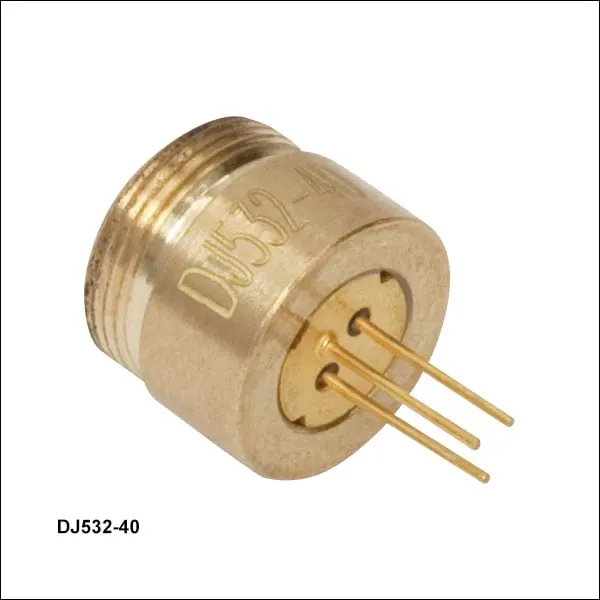

DJ532 Series 532 nm Diode-Pumped Solid State (DPSS) Lasers
Brand: ThorLabs | Category: Scientific & Laboratory Equipment
Compact green laser modules combining Nd:YVO4 and KTP crystals pumped by an 808 nm diode. They drop into a standard 5.6 mm laser diode pin layout but give much lower beam divergence than a semiconductor diode, for CW use only.
Technical Specifications
| Parameter | Value |
|---|---|
| Output wavelength | 532 nm |
| Output power | 10 mW or 40 mW continuous wave |
| Beam divergence | 12 mrad |
| Package | 9.5 mm diameter with M9 x 0.5 threaded housing |
| Operating temperature range | 20 to 25 C |
| Specification | Compatible with the LDM56 temperature-controlled mount via the LDM56DJ flange |
