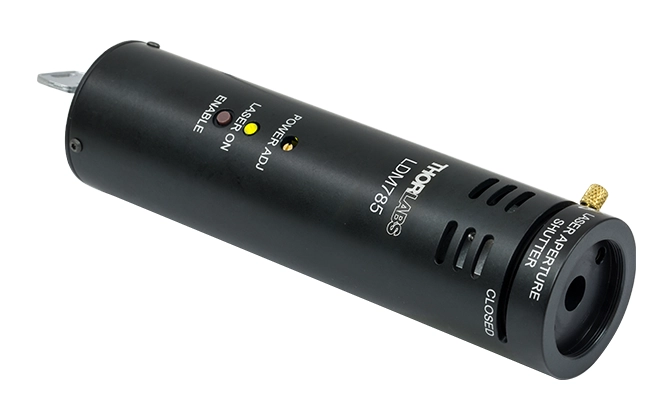

LDM Series Compact Laser Diode Modules
Brand: ThorLabs | Category: Scientific & Laboratory Equipment
Self-contained collimated laser diode modules in six wavelengths from 405 nm to 1550 nm. Each housing holds a Fabry-Perot diode, collimating lens, power controller and a built-in shutter, with internal SM1 threads so they mount straight into a lens tube system.
Technical Specifications
| Parameter | Value |
|---|---|
| Wavelengths | 405 nm, 635 nm, 670 nm, 785 nm, 850 nm and 1550 nm |
| Output power | 4.0 mW to 20 mW depending on model |
| Short term stability | 0.01 dB over 30 minutes |
| Long term drift | 0.1 dB over 24 hours |
| Specification | Internal SM1 (1.035"-40) threads and integrated beam shutter |
| Operating temperature | 10 to 40 C; power supply included |
