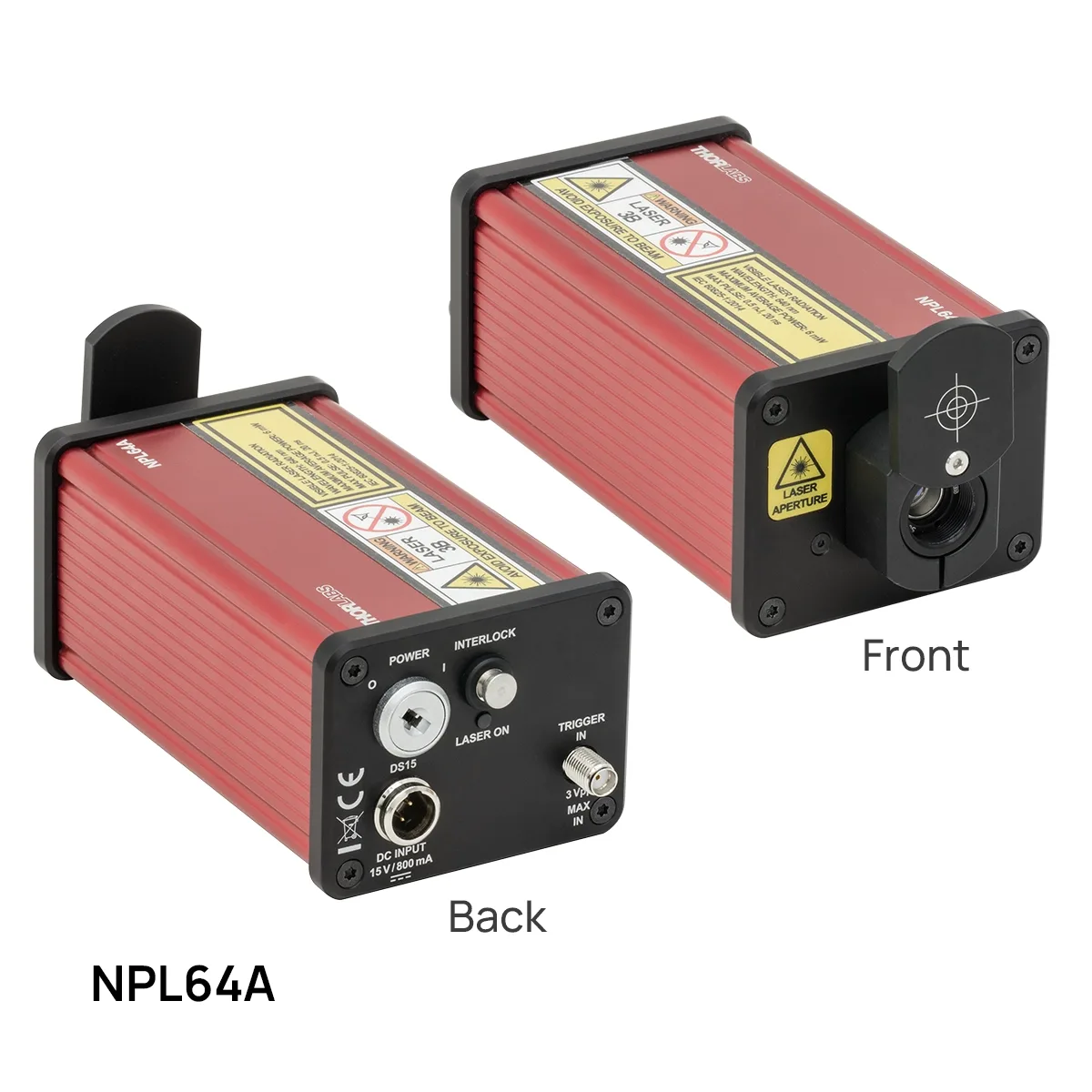

NPL Series Nanosecond Pulsed Laser Systems
Brand: ThorLabs | Category: Scientific & Laboratory Equipment
Compact pulsed laser heads with drive and temperature stabilisation electronics built in, giving a collimated free space output. Centre wavelengths run from 405 nm to 980 nm with fixed or adjustable pulse widths, suiting fluorescence lifetime and time-resolved work.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | Centre wavelengths from 405 nm to 980 nm, tolerance plus or minus 10 nm |
| Specification | Pulse widths from 5 ns to 39 ns on adjustable models, 10 ns fixed on NPL64A |
| Maximum trigger frequency | 10 MHz on B models, 50 kHz on C models |
| Specification | Pulse energy up to 3.5 nJ on B models and up to 204 nJ on C models |
| Specification | Peak power up to 1600 mW on the NPL45C |
| Beam pointing accuracy | 3 degrees or better |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about ThorLabs equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
