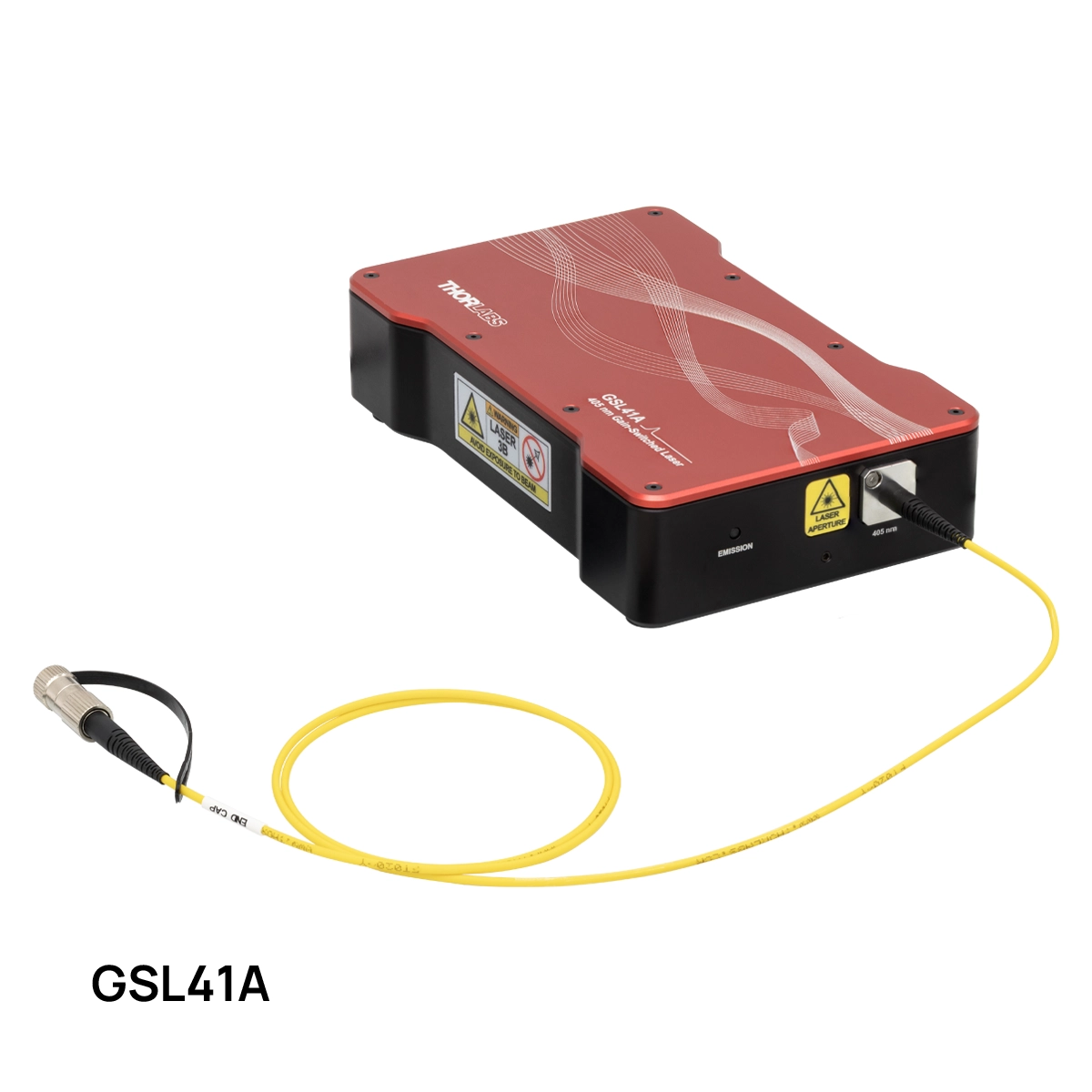

GSL Series Picosecond and Nanosecond Gain-Switched Lasers
Brand: ThorLabs | Category: Scientific & Laboratory Equipment
Fibre-coupled gain-switched diode lasers that run in picosecond pulsed, nanosecond pulsed or continuous wave mode. Twelve centre wavelengths are offered with single mode or polarisation maintaining output, for time-correlated single photon counting and lifetime measurement.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | Centre wavelengths from 405 nm to 1550 nm |
| Specification | Picosecond pulse durations from less than 70 ps to less than 130 ps |
| Repetition rates | 200 kHz to 200 MHz |
| Nanosecond pulse durations | 1 ns to 65 ns |
| Power stability | less than 2% over 8 hours |
| Output connector | FC/PC or FC/APC, 2.0 mm narrow key |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about ThorLabs equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
