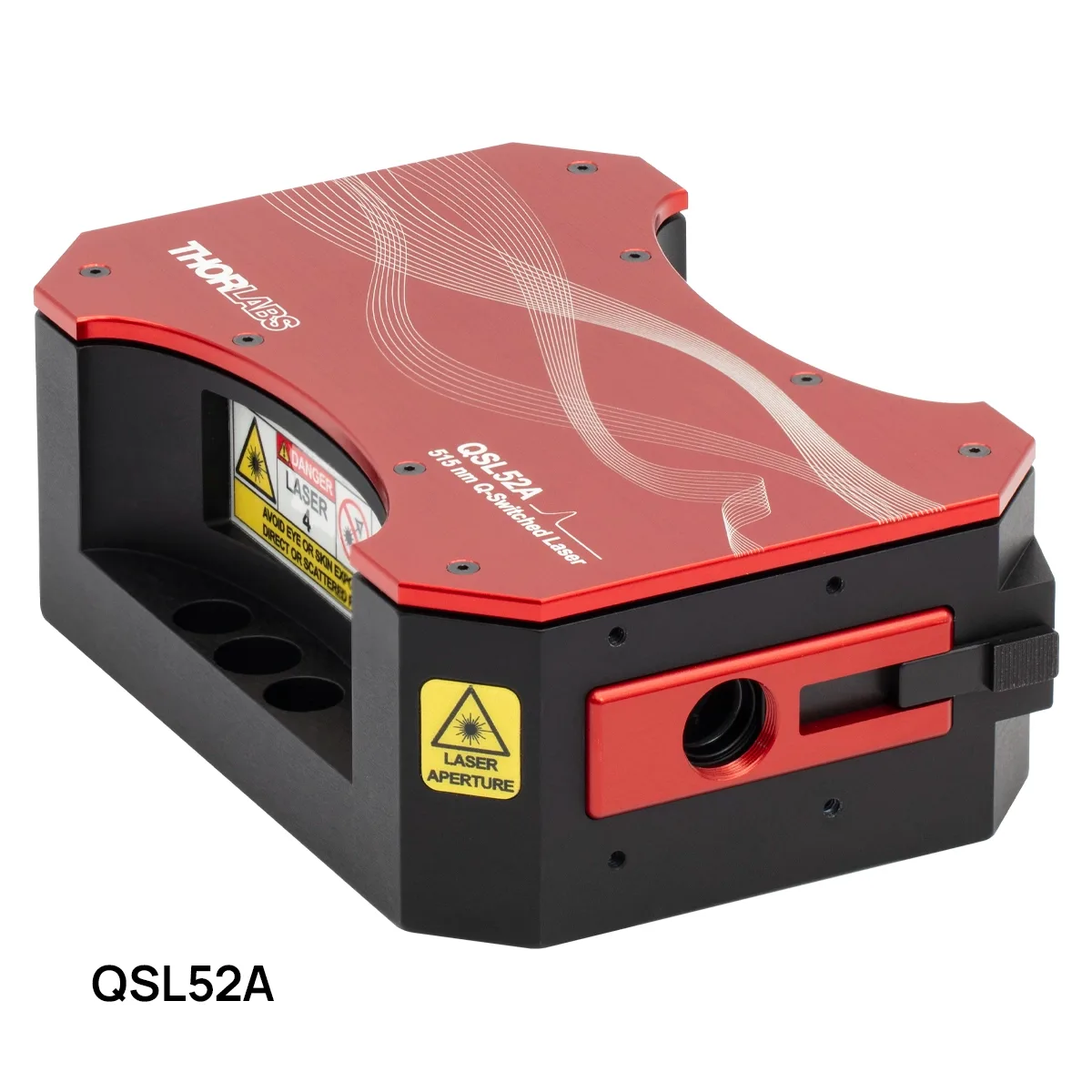

QSL Series Q-Switched Picosecond Microchip Laser Systems
Brand: ThorLabs | Category: Scientific & Laboratory Equipment
Turnkey microchip lasers giving sub-nanosecond pulses at 515 nm, 1030 nm or 1064 nm. High peak power and good beam quality make them suitable for material processing, ablation studies and nonlinear optics on a bench.
Technical Specifications
| Parameter | Value |
|---|---|
| Centre wavelengths | 515 nm, 1030 nm or 1064 nm |
| Average output power | 150 mW to 450 mW depending on model |
| Pulse energy | 1.7 to 50 microjoules |
| Output peak power | greater than 65 kW on the QSL103A |
| Pulse duration | 500 ps or 550 ps, plus or minus 100 ps |
| Specification | Beam quality M2 less than 1.3; lifetime 10 000 hours |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about ThorLabs equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
