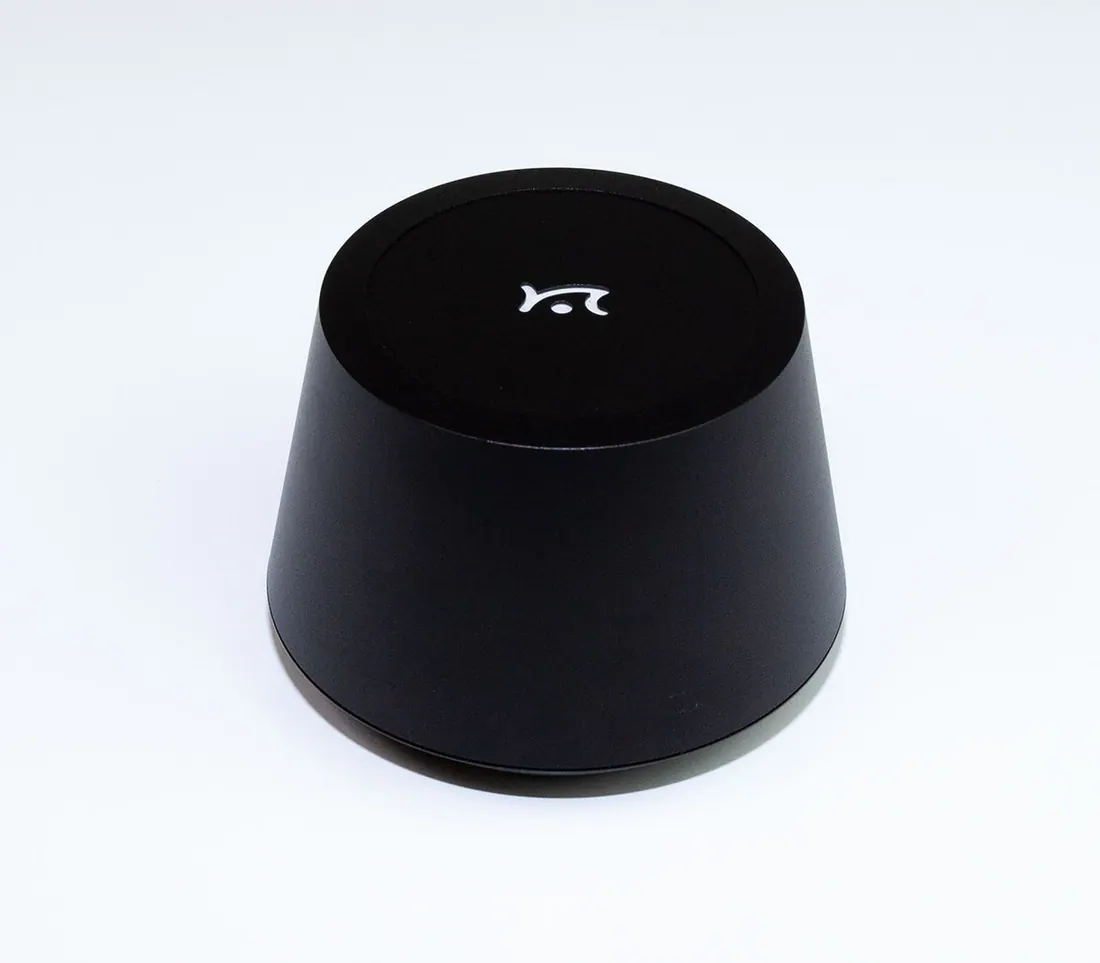

DriveAFM Camera
Brand: Nanosurf | Category: Nanotechnology
A top view camera for the DriveAFM on a magnetic kinematic mount, used to find the area of interest and watch the cantilever during approach. It carries adjustable Koehler-like sample illumination and sends images over USB 3.0.
Technical Specifications
| Parameter | Value |
|---|---|
| Resolution | below 1.7 um, 2592 x 1944 px colour CMOS sensor |
| Field of view | 1.1 x 0.85 mm |
| Optical magnification | 5.1x in air, 5.4x in water |
| Frame rate | 15 fps at full resolution |
| Dimensions | 110 mm diameter x 79 mm, weight 0.46 kg |
| Interface | USB 3.0 |
