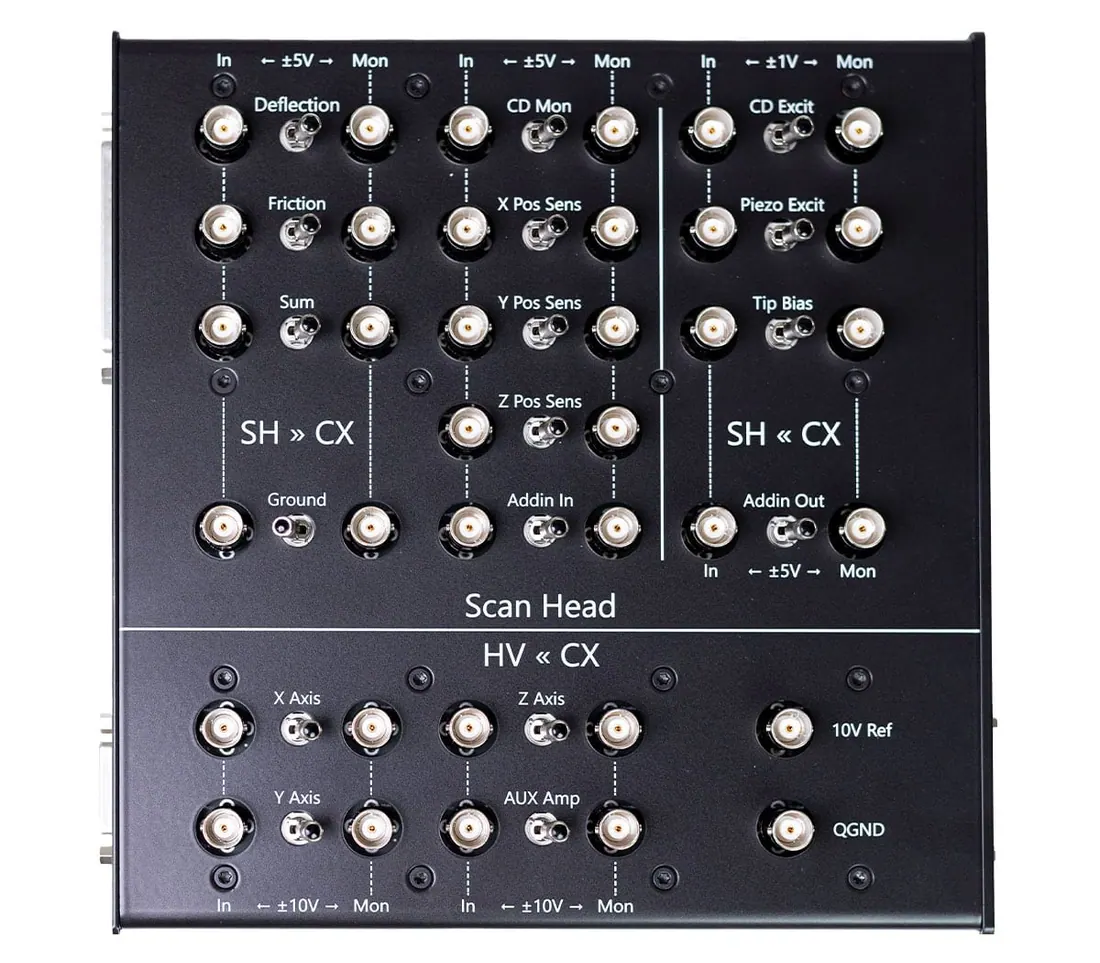

DriveAFM Signal IO Board
Brand: Nanosurf | Category: Nanotechnology
A breakout board that brings digital and analogue signals out of the DriveAFM controller on standard connectors. It is used for developing new measurement modes and for wiring the AFM to external instruments such as lock-in amplifiers or source meters.
Technical Specifications
| Parameter | Value |
|---|---|
| Number of signals | 19 |
| Dimensions | 220 x 220 x 60 mm |
| Weight | 1.4 kg |
| Compatibility | DriveAFM |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Materials, sample dimensions and process or measurement goal
- Required performance and existing instrument interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Nanosurf equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
