Environmental Option
Brand: Nanosurf | Category: Nanotechnology

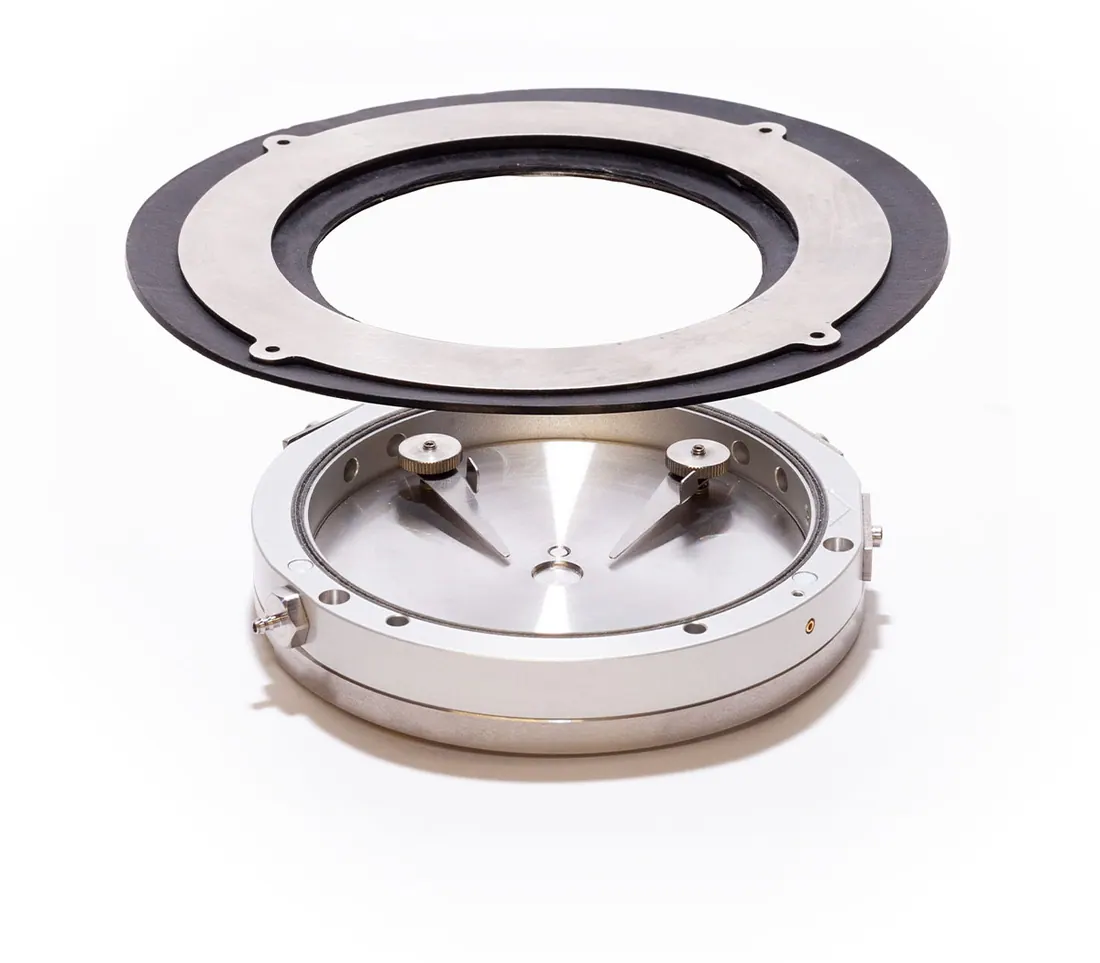

An environmental ring and sealing membrane that close off the sample space around a Nanosurf sample holder. This lets a measurement run under a chosen gas atmosphere or humidity while the scan head still reaches the sample.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | Stackable on 100 mm sample holders, excluding the Petri dish holder and 150 um Z holder |
| Ring dimensions | 100 mm diameter x 11 mm |
| Membrane dimensions | 127 mm diameter x 4 mm |
| Weight | 0.2 kg |
| Compatibility | DriveAFM, FlexAFM, CoreAFM |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Materials, sample dimensions and process or measurement goal
- Required performance and existing instrument interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Nanosurf equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
