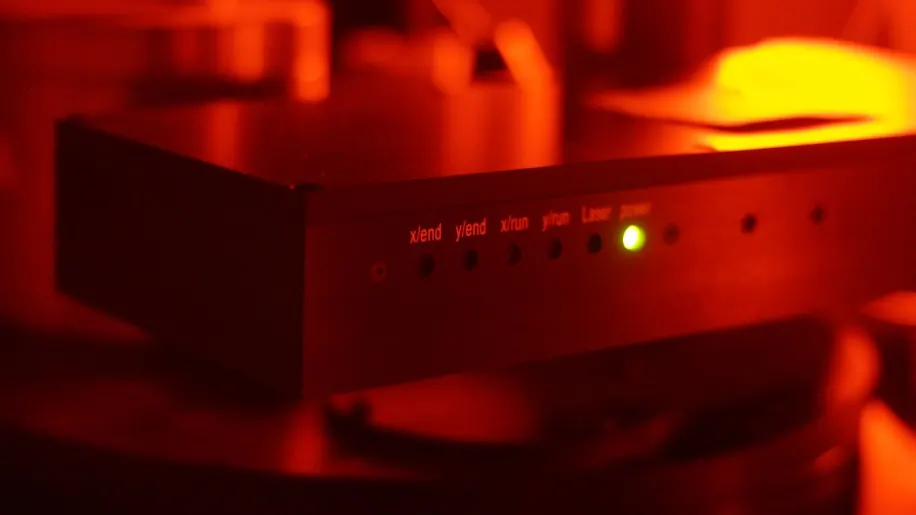

Dual laser single grain attachment
Brand: Riso | Category: Scientific & Laboratory Equipment
A single grain attachment with two focused lasers, green and infrared, so that feldspar contaminated quartz can be screened grain by grain. Both beams are steered by a motorised scanning mirror system over discs holding 100 individual grains.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | Green 532 nm, 10 mW stabilised DPSS laser |
| Specification | Infrared 830 nm, 140 mW TTL modulated diode laser |
| Specification | For grains of 180 to 250 micrometres |
| Specification | Aluminium discs with 100 grain holes of 300 micrometre diameter, 50 discs included |
| Specification | Both lasers can be ramped by software to perform LM-OSL |
| Specification | Includes a single grain IRSL/OSL head with about 40% lower light collection efficiency |
