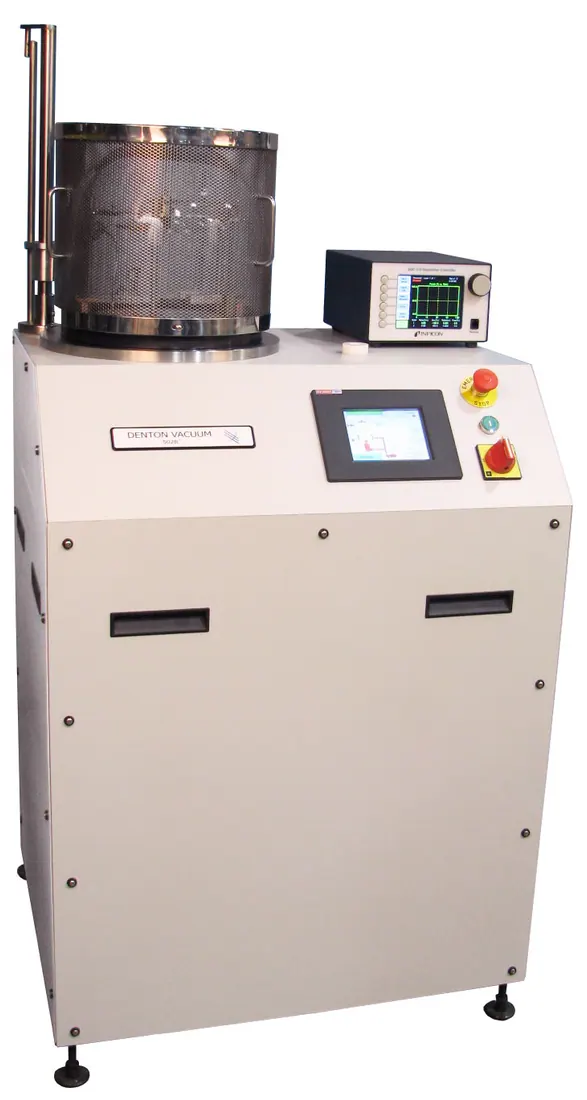

DV-502B High Vacuum Evaporator
Brand: Denton Vacuum | Category: Nanotechnology
The current diffusion pumped model in the DV-502 evaporator line, supplied with a 12 inch Pyrex bell jar and a colour touch screen control. The 1 kVA evaporation supply covers carbon, gold, gold palladium and platinum for electron microscope specimen preparation.
Technical Specifications
| Parameter | Value |
|---|---|
| Pumping performance | 10-4 torr within 3 minutes, 2 x 10-5 torr within 4 minutes in the standard bell jar |
| Bell jar | 12 inch diameter x 12 inch high Pyrex with guard, accepts up to 12 inch x 18 inch |
| Pumps | 250 lps diffusion pump with 5.8 cfm mechanical pump |
| Baseplate | 15 inch diameter stainless steel |
| Evaporation supply | 1 kVA standard, 2 kVA optional with filament holders |
| Weight | 500.25 lbs |
