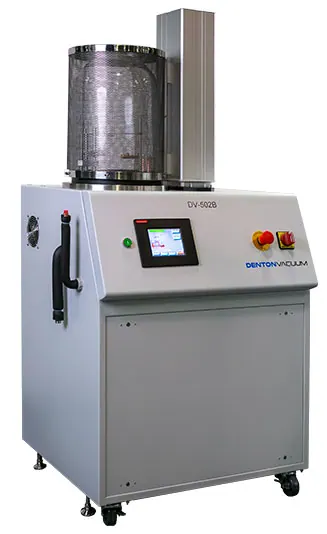

DV-502
Brand: Denton Vacuum | Category: Nanotechnology
A cabinet sized thermal evaporation system that deposits the metals and compounds used in optical coatings, metallisation and electron microscope specimen preparation. It reaches the 10-6 torr range within three minutes and works with no discernible contamination.
Technical Specifications
| Parameter | Value |
|---|---|
| Substrate size | up to 8 inches, 200 mm |
| Pumping | reaches the 10-6 torr range within three minutes |
| Sources | tungsten filaments, wire baskets, foil boats, baffle box heaters, carbon rod or yarn accessories |
| Technologies | thermal evaporation and sputtering |
| Applications | rotary shadowing, glow discharge for hydrophilic TEM grids, metal and dielectric films, forensic and failure analysis |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Materials, sample dimensions and process or measurement goal
- Required performance and existing instrument interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Denton Vacuum equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
