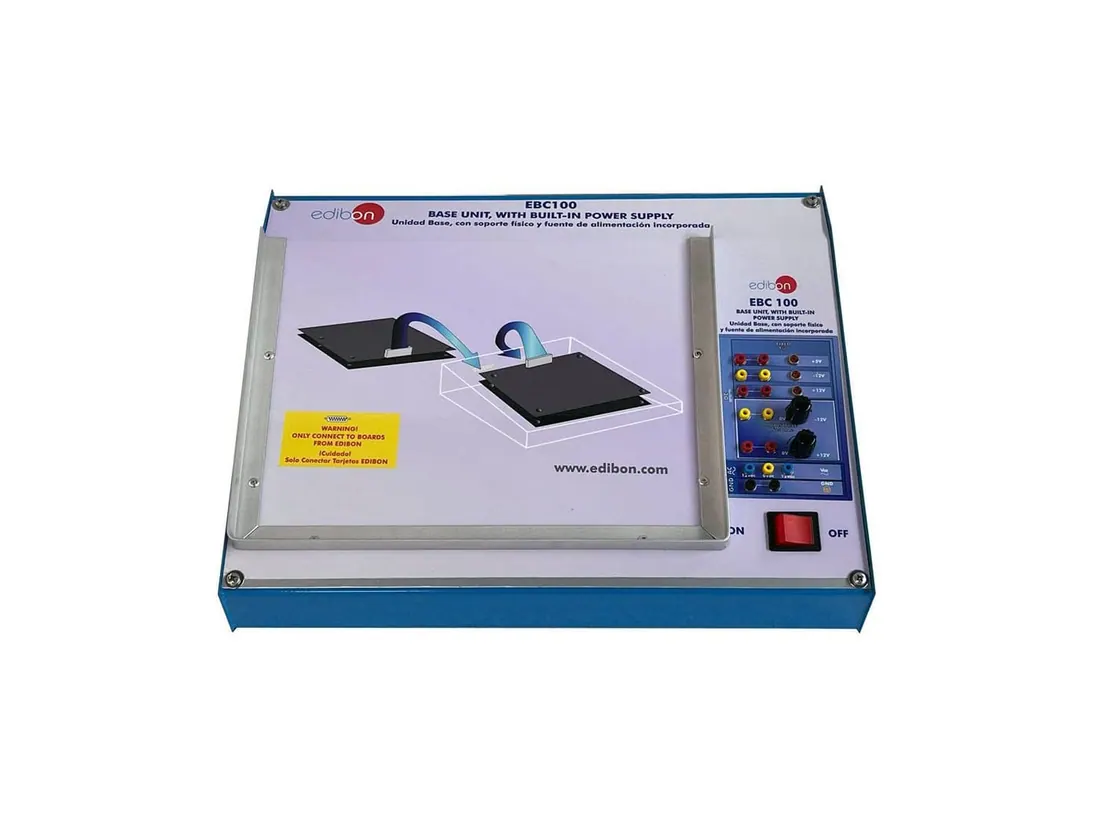

EBC100: Base Unit, with built-in power supply
Brand: EDIBON | Category: Scientific & Laboratory Equipment
A self contained base unit that holds EDIBON teaching modules and supplies them with power. It includes the hardware support, the built in power supply and the connections needed to seat and energise the available modules.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | Hardware support and power supply, modules supporting unit |
| DC fixed outputs | +5 V, +12 V and -12 V |
| DC variable outputs | 12 V |
| AC outputs | 12 V or 24 V |
| Specification | Outputs through 2 mm contact terminals or a 25 pin Sub-D connector |
| Dimensions | 410 x 298 x 107 mm approx. Weight: 2 kg approx. |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about EDIBON equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
