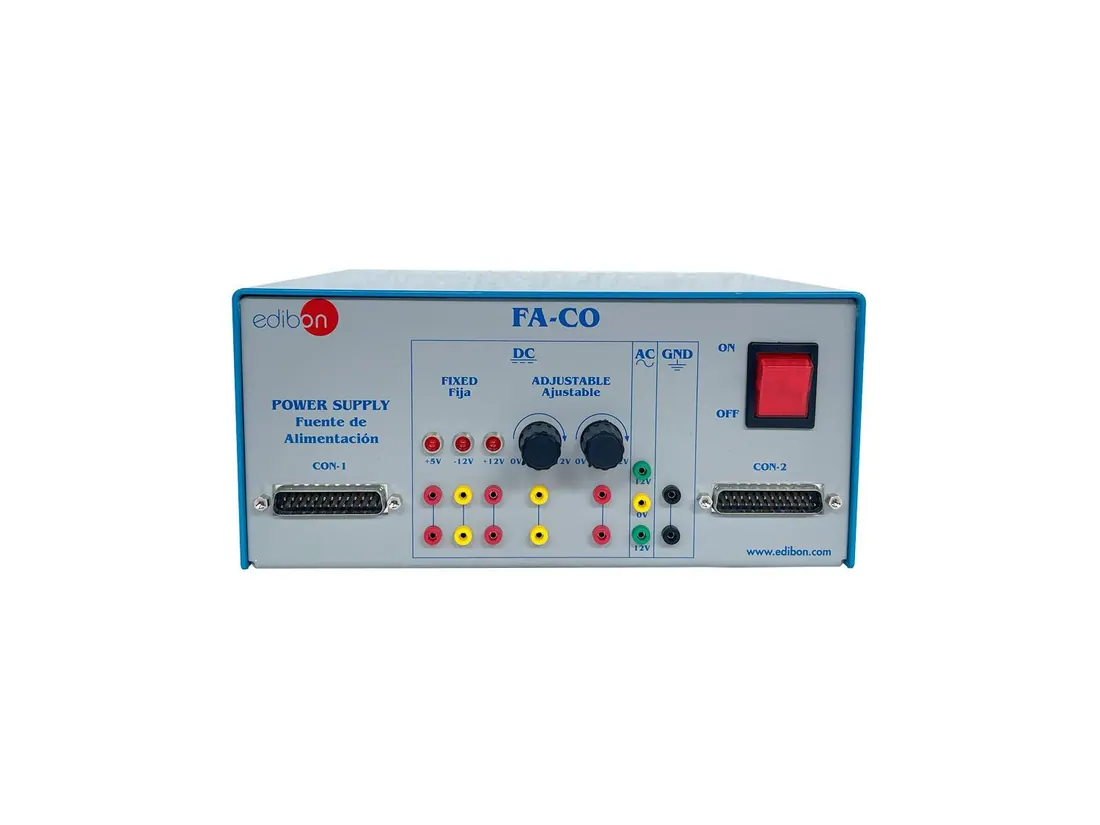

FACO: Power Supply
Brand: EDIBON | Category: Scientific & Laboratory Equipment
The standard laboratory power supply used with EDIBON electronics and communications modules. It provides fixed and variable DC rails plus an AC output through 2 mm terminals or a 25 pin Sub-D connector, with LED voltage indicators.
Technical Specifications
| Parameter | Value |
|---|---|
| DC fixed outputs | +5 V and 12 V, 1 A |
| DC variable outputs | 12 V, 0.5 A |
| AC outputs | 12 V or 24 V |
| Specification | Outputs through 2 mm terminals or 25 pin Sub-D connectors, two outputs |
| Power | 110/220 VAC, frequency 50/60 Hz |
| Dimensions | 225 x 205 x 100 mm approx. Weight: 2 kg approx. |
