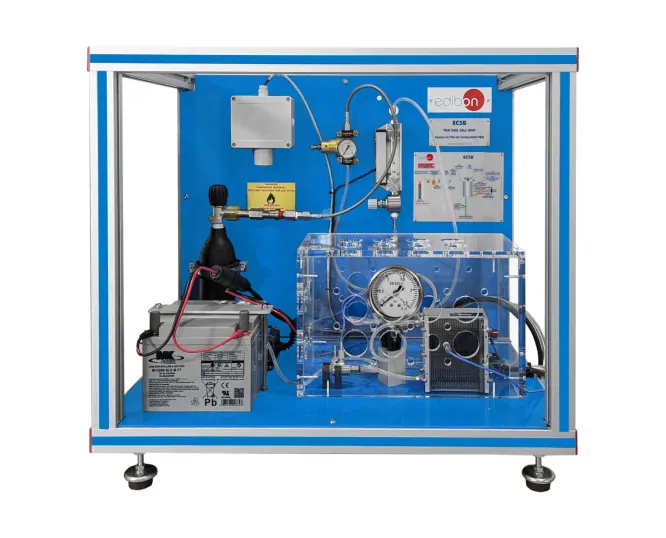

EC5B: PEM Fuel Cell Unit
Brand: EDIBON | Category: Scientific & Laboratory Equipment
Proton exchange membrane fuel cell unit for teaching the fundamentals of the technology. Students obtain power density, polarisation curves and efficiency, and see how these change with reagent consumption and with the power developed.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | PEM fuel cell stack with a rated power of 100 W |
| Specification | Stack composed of 24 self humidifying cells with channelled plates |
| Specification | Integrated fan supplies the air and maintains the stack temperature |
| Specification | Pressure regulator for the hydrogen bottle outlet, 5 to 50 bar |
| Specification | Pressure regulator at the metal hydride bottle outlet for a stack inlet of 0 to 1 bar |
| Specification | Short circuit protection at 12 A over current and 12 V low voltage shut down |
