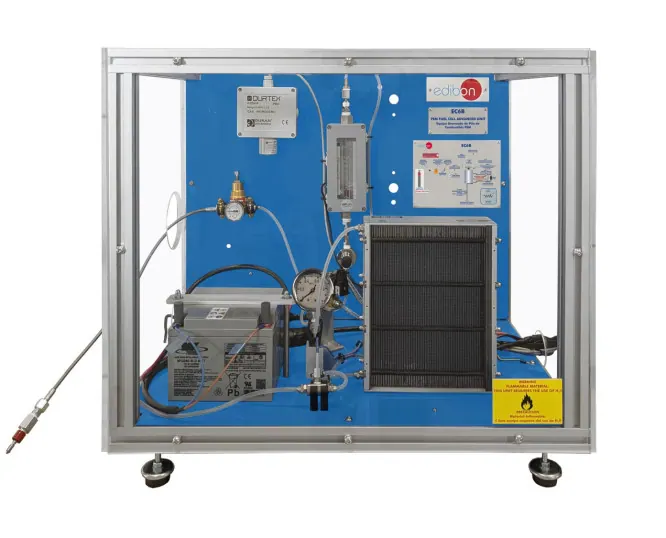

EC6B: PEM Fuel Cell Advanced Unit
Brand: EDIBON | Category: Scientific & Laboratory Equipment
Higher power proton exchange membrane fuel cell unit for advanced study of the technology. The load regulation system lets students record the characteristic operating curves and compare them with the theoretical curves.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | PEM fuel cell stack with a rated power of 1000 W |
| Specification | Stack composed of multiple self humidifying cells with channelled plates |
| Specification | Integrated fan supplies the air and maintains the stack temperature |
| Specification | Pressure regulator for the hydrogen bottle outlet, 5 to 50 bar |
| Specification | Pressure regulator at the metal hydride bottle outlet for a stack inlet of 0 to 1 bar |
| Specification | Short circuit protection at 30 A over current and 36 V low voltage shut down |
