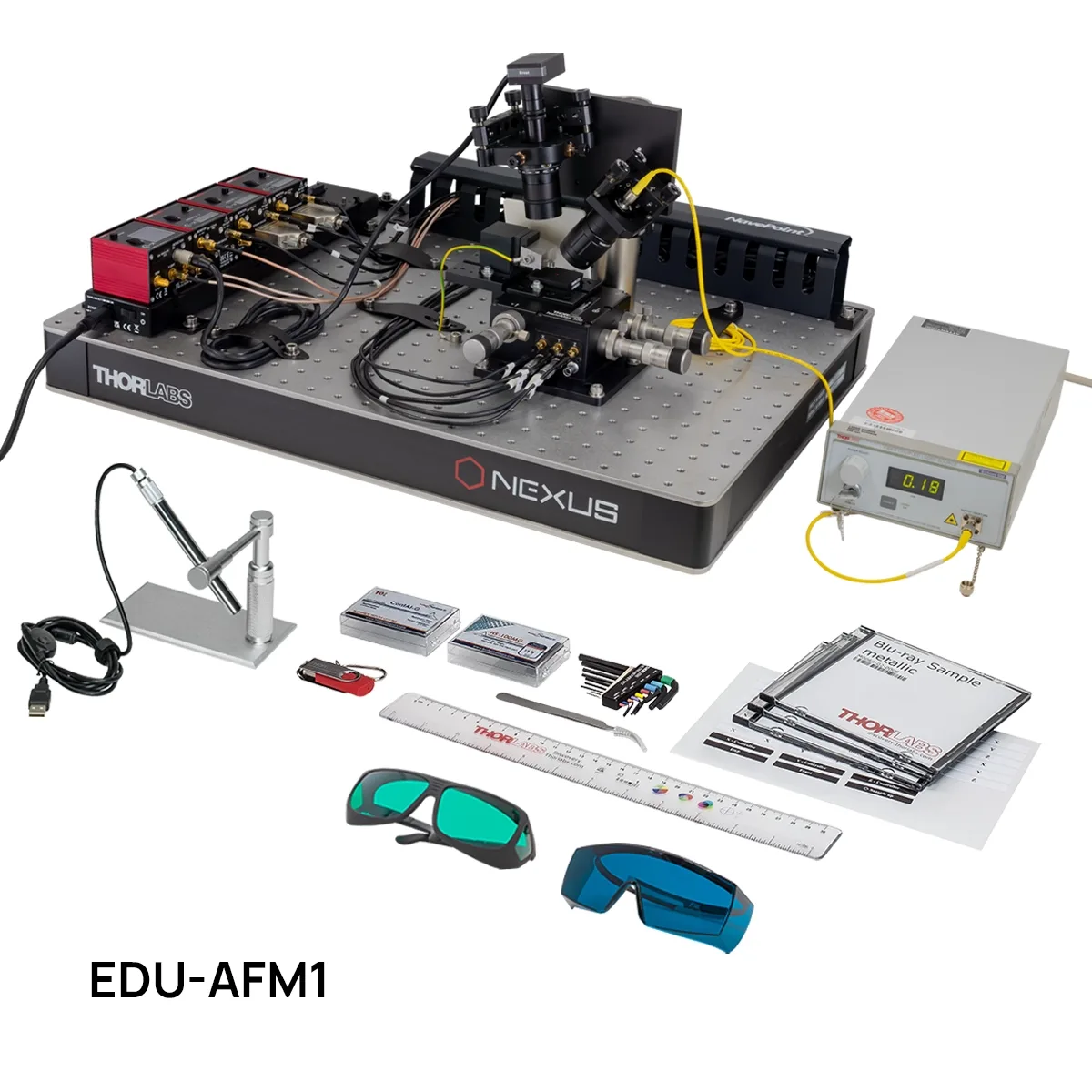

EDU-AFM1 Educational Atomic Force Microscope
Brand: ThorLabs | Category: Scientific & Laboratory Equipment
A build-it-yourself atomic force microscope for teaching laboratories, imaging in constant height, constant force and lateral force modes. Optical disc samples and a calibration microstructure are supplied so students can compare known surfaces.
Technical Specifications
| Parameter | Value |
|---|---|
| Scan area | 0.05 micrometres square minimum to 20 micrometres square maximum |
| Sampled pixels per line | 50, 100, 250 or 500; scan speed 1 to 200 pixels per second |
| Typical distinguishable feature size | about 10 nm |
| Modes | constant force, constant height, lateral force and force-distance curves |
| Feedback | XY closed-loop piezo stage with strain gauge reader |
| Laser | 635 nm, 0.01 to 2.5 mW; ten aluminium coated cantilevers included |
