3D Visualization Software Hitachi map 3D
Brand: Hitachi High-Tech | Category: Scientific & Laboratory Equipment

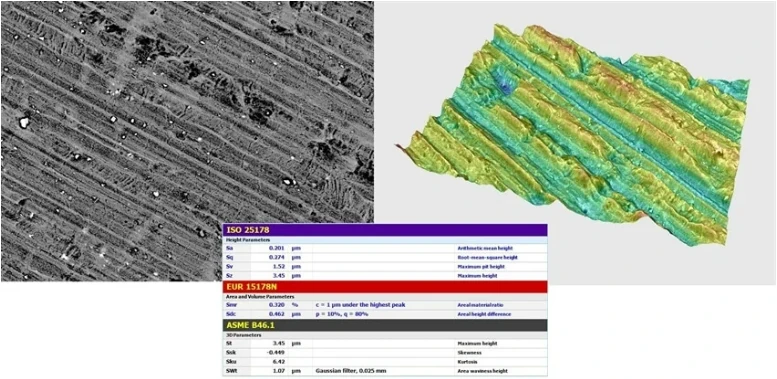

Hitachi map 3D builds a three dimensional model from the four signals of the segmented backscattered electron detector, with no sample tilting and no manual collection of consecutive images. It measures height, area, volume and ISO compliant surface roughness, and produces reports.
Technical Specifications
| Parameter | Value |
|---|---|
| Detectable angle range | ±60° reference |
| Detectable angle range on TM4000 | ±50° reference |
| Specification | Measures distance in X and Y, length, angle, surface area and volume between two points |
| Specification | Simple profile and surface roughness measurement with baseline, levelling and multiple offsets |
| Report and image output | PDF, RTF, PNG, JPG, GIF, TIF, BMP, EMF |
| 3D image and movie output | SUR, 3MF, STL, WRL, TXT, X3D, WMV, AVI |
