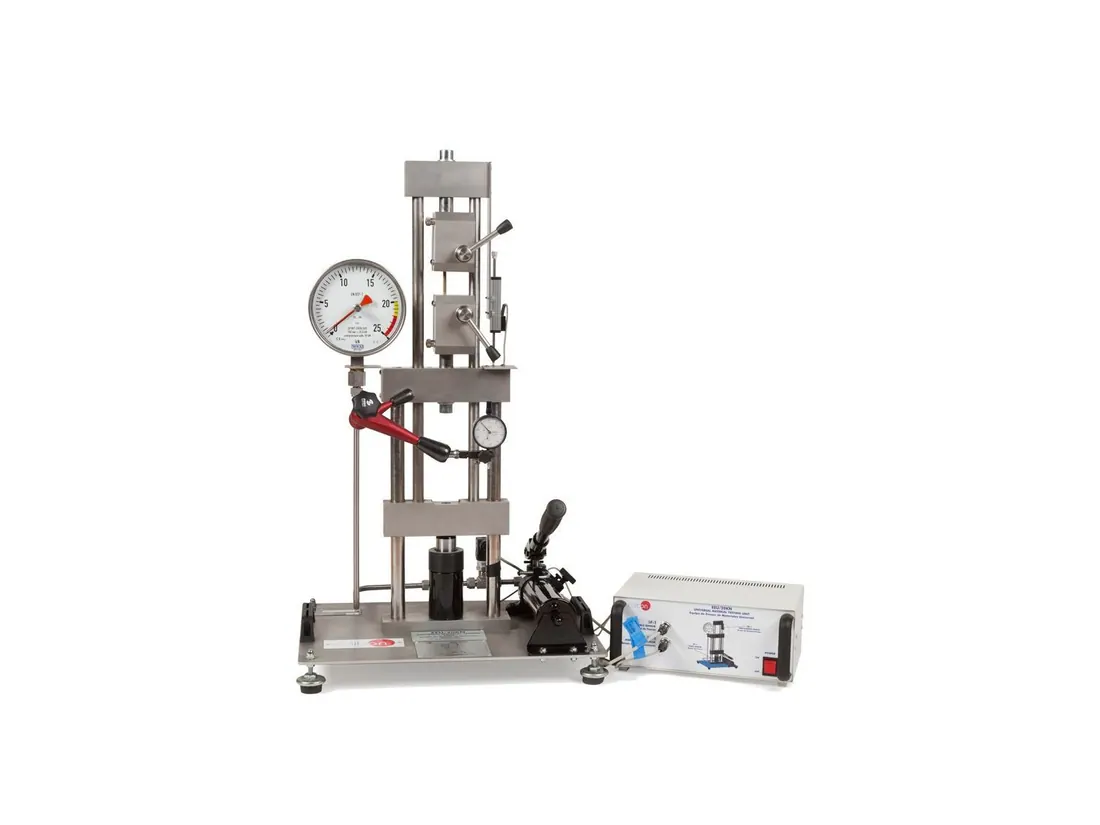

EEU/20KN: Universal Material Testing Unit
Brand: EDIBON | Category: Scientific & Laboratory Equipment
EEU/20KN is a bench universal testing machine for tensile, compression and bending tests on small specimens. Load and extension are recorded during the test so the stress strain curve, yield point, tensile strength and elongation can be obtained.
Technical Specifications
| Parameter | Value |
|---|---|
| Dimensions | 550 x 500 x 800 mm approx |
| Weight | 60 Kg approx |
| Maximum stroke | 45 mm |
| Dynamometer | 0 to 20 kN. Graduations: 0.5 kN |
| Elongation gauge | 0 to 10 mm. Graduations: 0.01 mm |
| Deformation displacement sensor, range | 0 to 50 mm |
