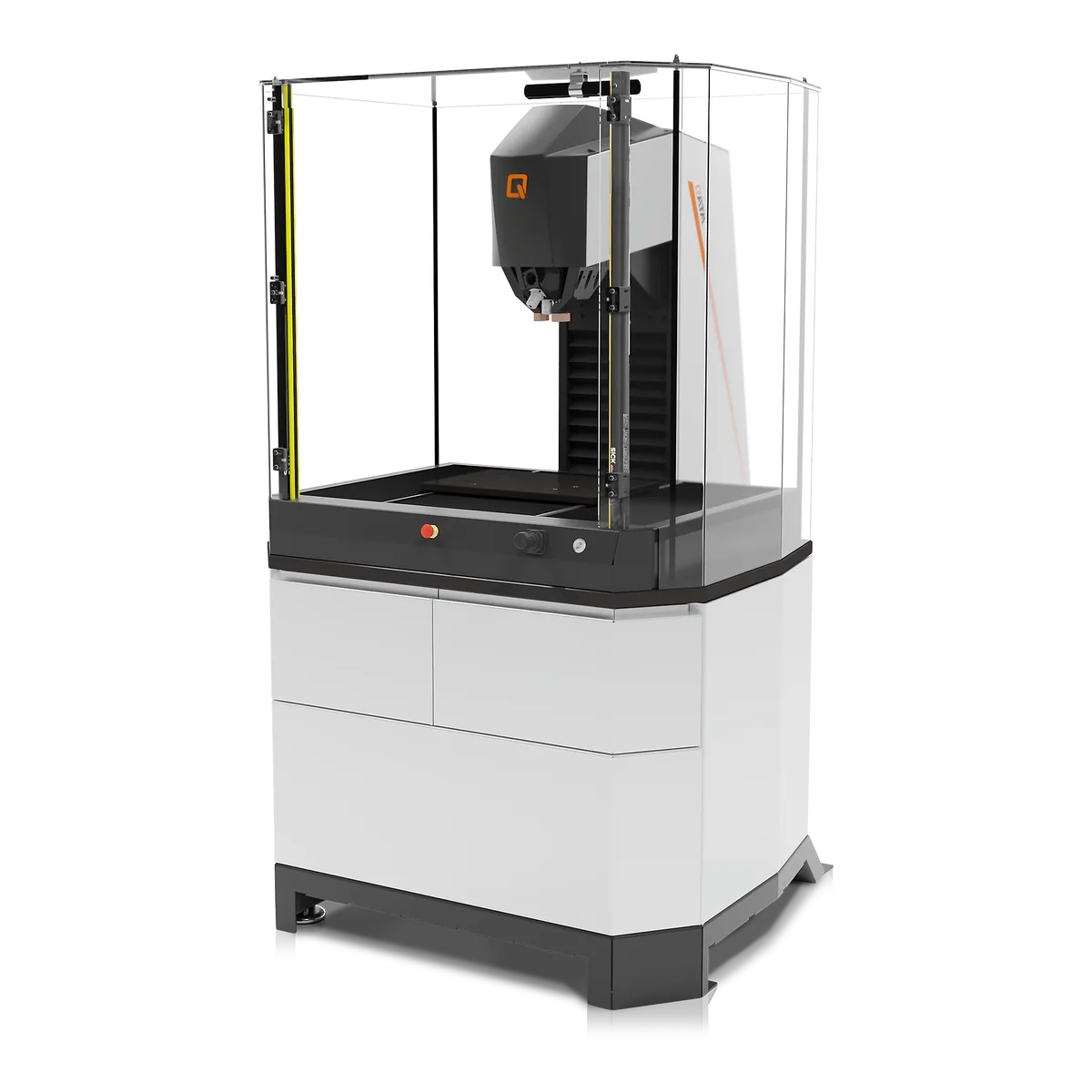

Qness 250 / 750 / 3000 A+ EVO: Fully Automated Macro Hardness Tester
Brand: QATM | Category: Scientific & Laboratory Equipment
Fully automated macro hardness testers with three axis control, so specimens of differing test height can be measured in one run without refixturing. A Jominy sample holder with test module is available as an option for end quench hardenability testing.
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| Test force range | Model 250 A+: 1 - 250 kg (9.81 - 2450 N) | Model 750 A+: 0.3 – 750 kg (2.94 – 7358 N) | Model 3000 A+: 0.3 - 3000 kg (2.94 - 29430 N) |
| Sample image camera | resolution 5 megapixel |
| Test height / Throat depth | 362 / 320 mm |
| Weight basic machine | 695 kg |
| Power connection | 230~ 50-60Hz 1/N/PE (option: 110~1/N/PE) |
| Max. power consumption | ~ 1680 W |
Selected values from the manufacturer’s technical data for this product or explicitly named model variants. Measurement performance depends on the sample and configuration. Confirm the current model, utilities, accessories and acceptance criteria in the quotation. Checked 2026-09-29.
