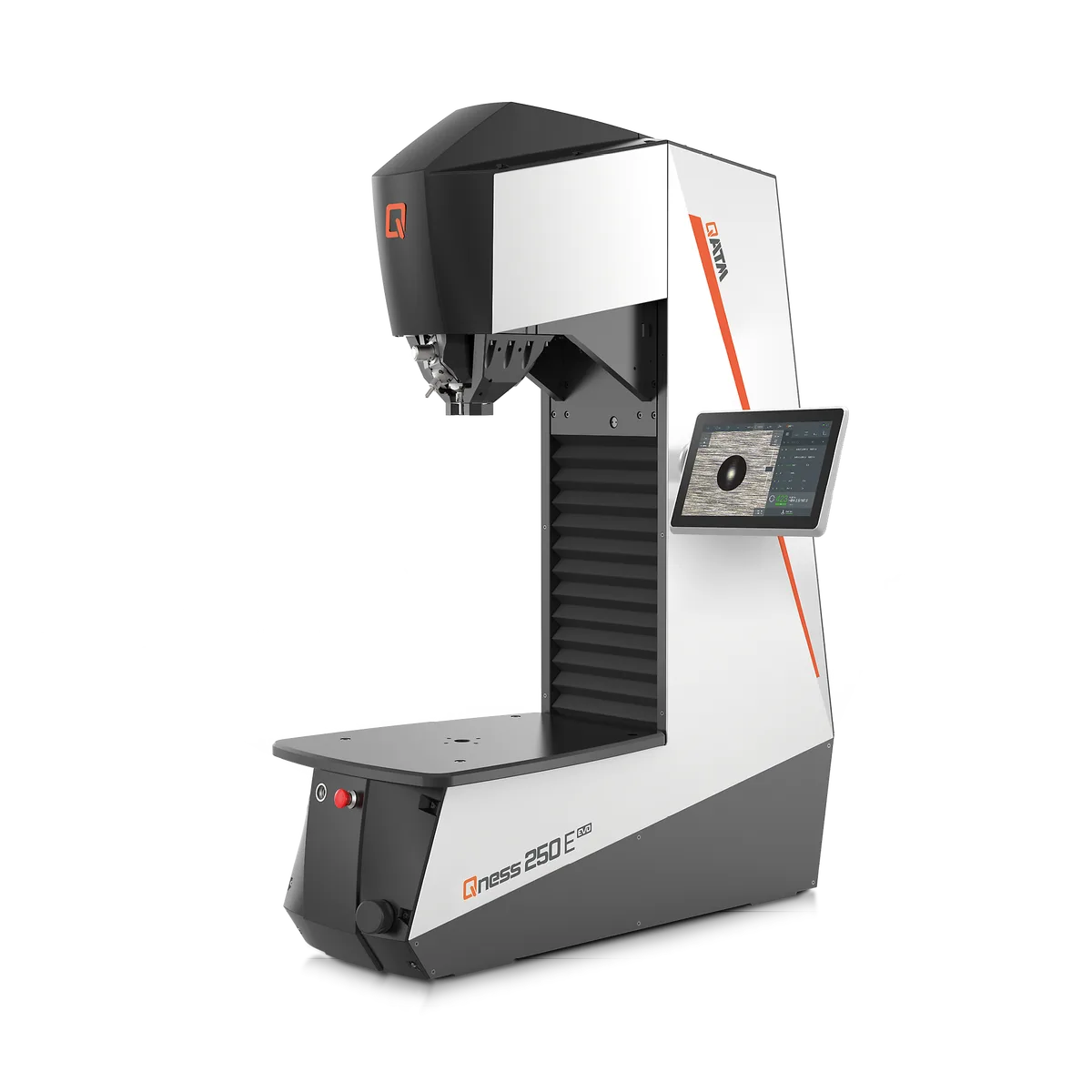

Qness 250 / 750 / 3000 E EVO: Macro Hardness Tester
Brand: QATM | Category: Scientific & Laboratory Equipment
Macro hardness testers with an extra large fixed test table and a motorised test head, so very large components can be tested without lifting them onto a spindle. Test height reaches 510 mm and the table measures 584 by 450 mm, which puts heavy fabricated parts within reach.
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| Test force range | Qness 250 E EVO: 1 - 250 kg (9.81 - 2450 N) | Qness 750 E EVO: 0.3 – 750 kg (2.94 – 7358 N) | Qness 3000 E: 0.3 - 3000 kg (2.94 - 29430 N) |
| Test height / Throat depth | 510 mm / 320 mm |
| Weight of basic machine | 500 kg |
| Power connection | 230~ 50-60Hz 1/N/PE (option: 110~1/N/PE) |
| Max. power consumption | ~ 1230 W |
Selected values from the manufacturer’s technical data for this product or explicitly named model variants. Measurement performance depends on the sample and configuration. Confirm the current model, utilities, accessories and acceptance criteria in the quotation. Checked 2026-09-29.
