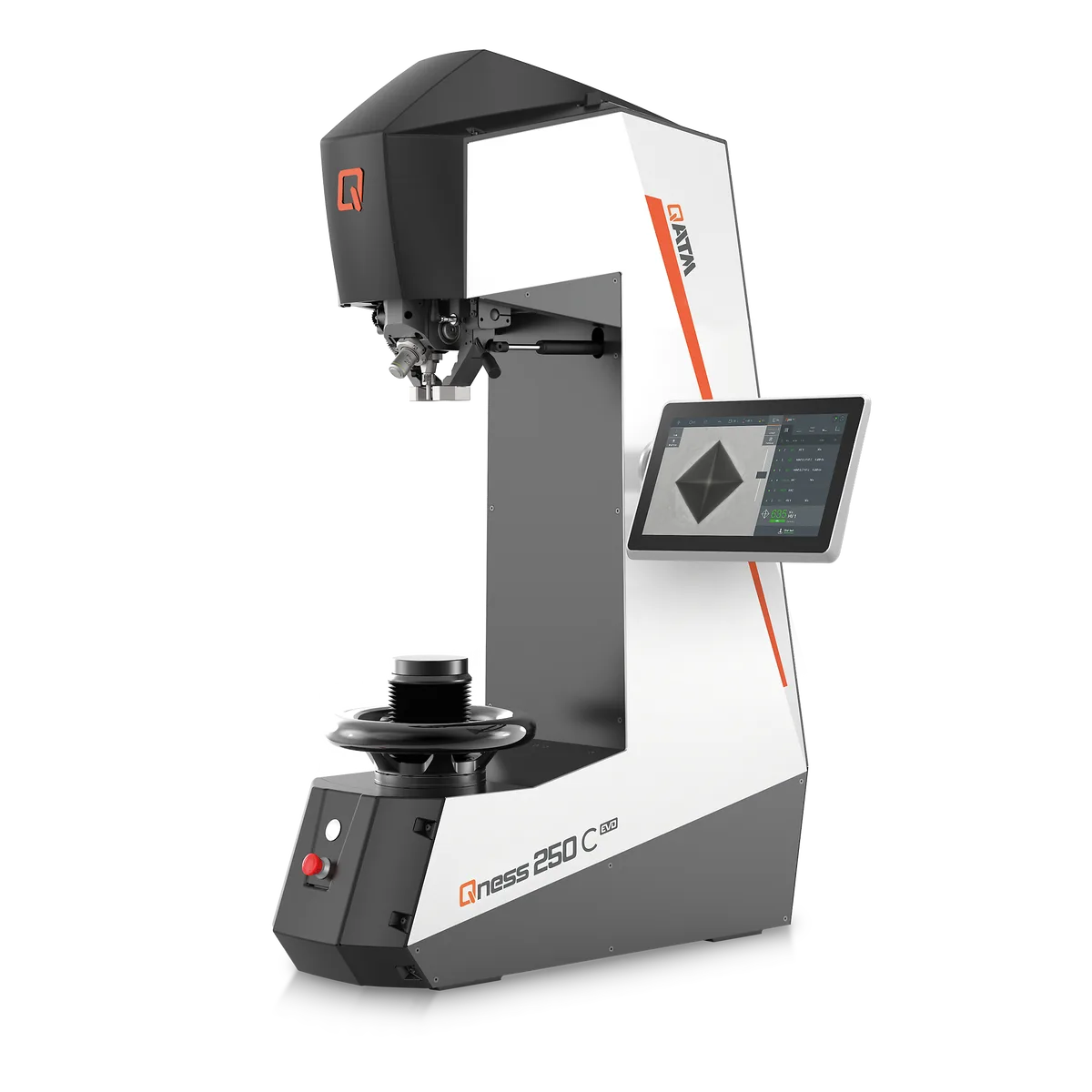

Qness 250 / 750 / 3000 C and CS EVO: Universal Hardness Tester
Brand: QATM | Category: Scientific & Laboratory Equipment
Universal hardness testers covering Brinell, Vickers, Rockwell, Knoop and plastics methods, in three force classes up to 3000 kg. The C shaped frame with fixed head and moving spindle gives a 395 mm test height, and an eight position tool changer is available in place of the standard two positions.
Published C EVO configuration data
| Parameter | Value |
|---|---|
| C EVO Test force range | Model 250 C: 1 - 250 kg (9.81 - 2450 N) | Model 750 C: 0.3 – 750 kg (2.94 – 7358 N) | Model 3000 C: 0.3 - 3000 kg (2.94 - 29430 N) |
| C EVO Test height / Throat depth | 395 / 220 mm |
| C EVO Weight basic machine | 300 kg |
| C EVO Power supply | 230~1/N/PE, 110~1/N/PE |
| C EVO Max. power consumption | ~ 480 W |
These values describe the C EVO configurations explicitly named on the manufacturer page. They must not be used as CS EVO specifications. Confirm the exact C or CS model, load range and working space in the quotation. Checked 2026-09-29.
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Sample material, dimensions/quantity and required preparation or analysis result
- Measuring/working range, repeatability requirements and compatible accessories
- Utilities, calibration/reference materials, software and service scope
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about QATM equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
