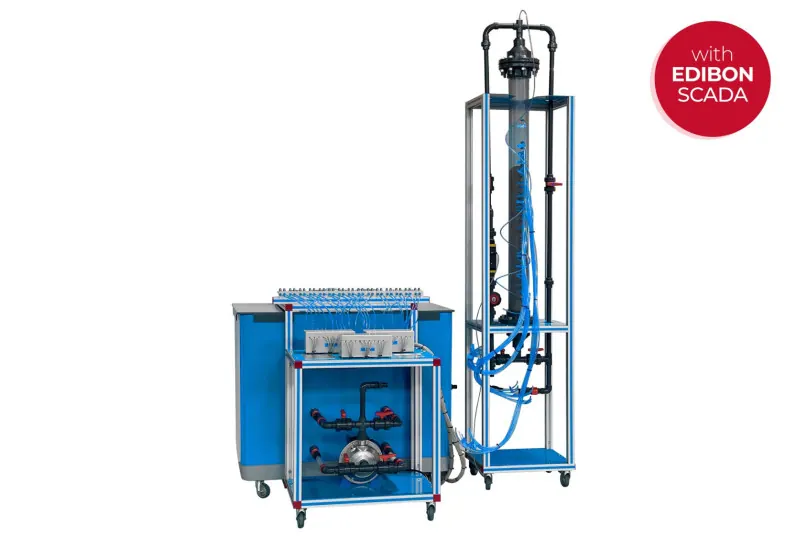

EFLPC: Computer Controlled Deep Bed Filter Unit
Brand: EDIBON | Category: Scientific & Laboratory Equipment
A deep bed filter that removes suspended solids from raw water as it passes down through a granular medium. Students follow head loss with time, measure filtrate quality and carry out backwashing, which covers the core rapid gravity filtration experiments.
Technical Specifications
| Parameter | Value |
|---|---|
| Total capacity | 700 l |
| Thirty pressure sensors, range | 0 to 30 psi |
| Flow sensor, range | 2 to 150 l/min; accuracy: ± 2 % |
| Dimensions | 1600 x 1500 x 2500 mm approx |
| Weight | 250 kg approx |
| Electrical supply | single-phase 200 VAC to 240 VAC/50 Hz or 110 VAC to 127 VAC/60 Hz |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about EDIBON equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
