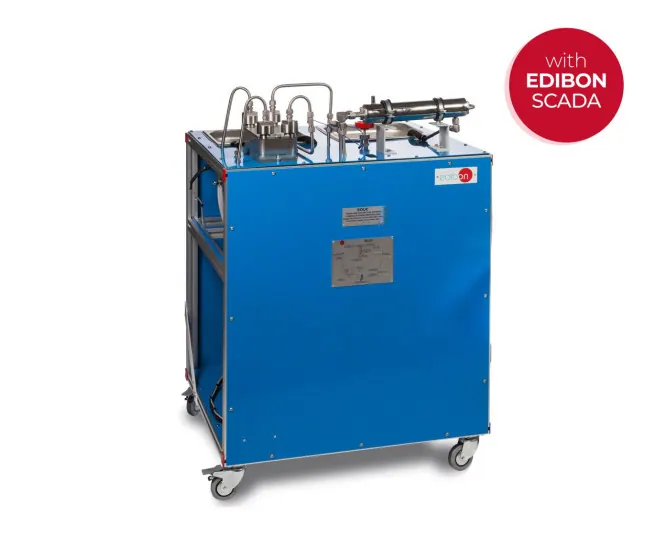

ROUC: Computer Controlled Reverse Osmosis/Ultrafiltration Unit
Brand: EDIBON | Category: Scientific & Laboratory Equipment
A membrane unit that performs tangential flow filtration by both reverse osmosis and ultrafiltration. Two variable speed pumps set the feed conditions, so students can measure permeate flux and rejection against pressure, cross flow velocity and feed concentration.
Technical Specifications
| Parameter | Value |
|---|---|
| Maximum design pressure | 150 bar; maximum operation pressure: 55 bar |
| Membrane diameter | 12.5 mm |
| Tube volume | 75 ml |
| Maximum flow | 38 l/min |
| Pressure sensor, range | 0 to 100 bar |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about EDIBON equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
Back to Scientific & Laboratory Equipment
More from Water & Wastewater Treatment Lab
- PEAC: Computer Controlled Adsorption Unit
An adsorption unit with two activated carbon columns that can be operated in series or in parallel. It reproduces the behaviour of adsorption in physico-chemical water treatment, allowing breakthrough curves and bed exhaustion to be measured under different flow rates.
- EFLPC: Computer Controlled Deep Bed Filter Unit
A deep bed filter that removes suspended solids from raw water as it passes down through a granular medium. Students follow head loss with time, measure filtrate quality and carry out backwashing, which covers the core rapid gravity filtration experiments.
- PDSC: Computer Controlled Sedimentation Tank
A continuous flow sedimentation tank for demonstrating the settling of discrete particles. Students measure removal efficiency against overflow rate and detention time and observe the flow pattern through the tank, which underpins primary settlement design.
