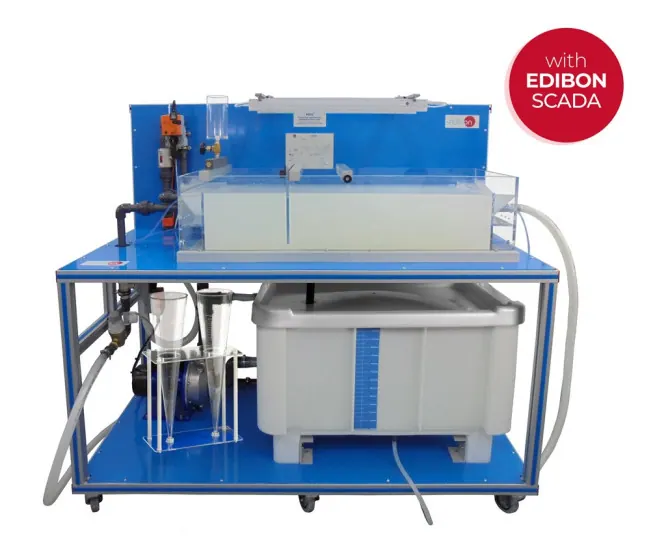

PDSC: Computer Controlled Sedimentation Tank
Brand: EDIBON | Category: Scientific & Laboratory Equipment
A continuous flow sedimentation tank for demonstrating the settling of discrete particles. Students measure removal efficiency against overflow rate and detention time and observe the flow pattern through the tank, which underpins primary settlement design.
Technical Specifications
| Parameter | Value |
|---|---|
| Flow sensor, range | 0.1 to 25 l/min |
| Flow sensor, range | 1.5 to 30 l/min |
| Specification | Suspension tank of 140 l |
| Specification | Two Imhoff cones of 1000 ml, to measure the solids concentrations |
| Specification | Graduated test tube of 1 l |
| Electrical supply | single-phase 200 VAC to 240 VAC/50 Hz or 110 VAC to 127 VAC/60 Hz |
