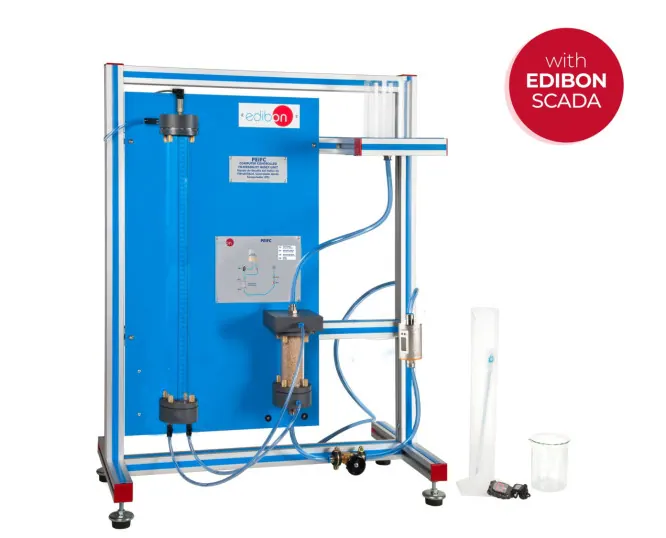

PEIFC: Computer Controlled Filterability Index Unit
Brand: EDIBON | Category: Scientific & Laboratory Equipment
A unit that determines the filterability index of a water sample using a bed of granular material, normally sand, chosen by the student. The measurements taken allow the filterability of different waters and media to be compared before a full filtration design is attempted.
Technical Specifications
| Parameter | Value |
|---|---|
| Height of the filter | 70 mm |
| Test filter cell diameter | 44 mm |
| Flow sensor, range | 0.07 to 0.55 l/min |
| Two pressure sensor, range | 0 to 2,5 bar |
| Thermometer, range | -10 °C to 110 °C |
| Electrical supply | single-phase 200 VAC to 240 VAC/50 Hz or 110 VAC to 127 VAC/60 Hz |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about EDIBON equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
