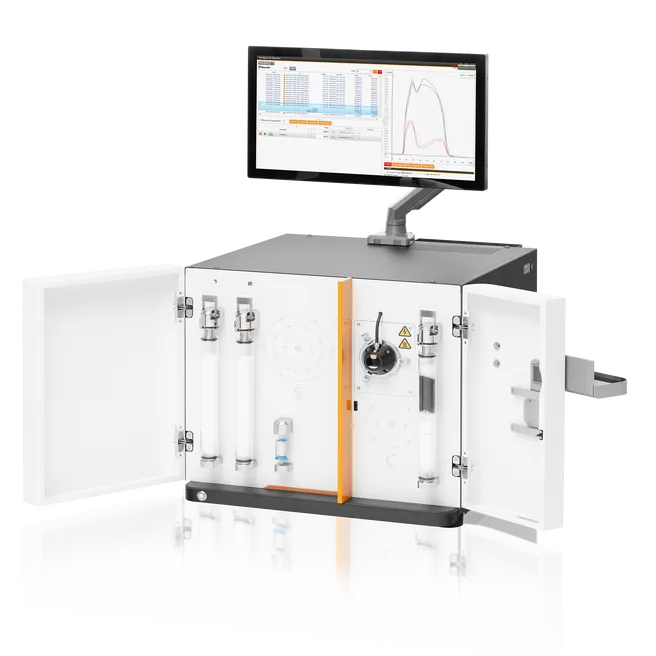

ELEMENTRAC CS-r: Carbon / Sulphur Analyser
Brand: Eltra | Category: Scientific & Laboratory Equipment
Horizontal resistance furnace analyser for carbon and sulphur in organic samples, using ceramic boats that allow a high sample weight. The infrared path is made of solid gold, which resists the halogen and acid combustion products that corrode aluminium cells. Furnace temperature is adjustable to 1550 degrees Celsius in one degree steps.
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| Typical analysis time | 60 - 180 s |
| Power requirements | 230 V, 50/60 H, max. heating up current 20 A |
| Dimensions (W x H x D) | 58 x 52 x 75 cm |
| Weight | ~ 77 kg |
Selected values from the manufacturer’s technical data for this product or explicitly named model variants. Measurement performance depends on the sample and configuration. Confirm the current model, utilities, accessories and acceptance criteria in the quotation. Checked 2026-09-29.
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Sample material, dimensions/quantity and required preparation or analysis result
- Measuring/working range, repeatability requirements and compatible accessories
- Utilities, calibration/reference materials, software and service scope
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Eltra equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
