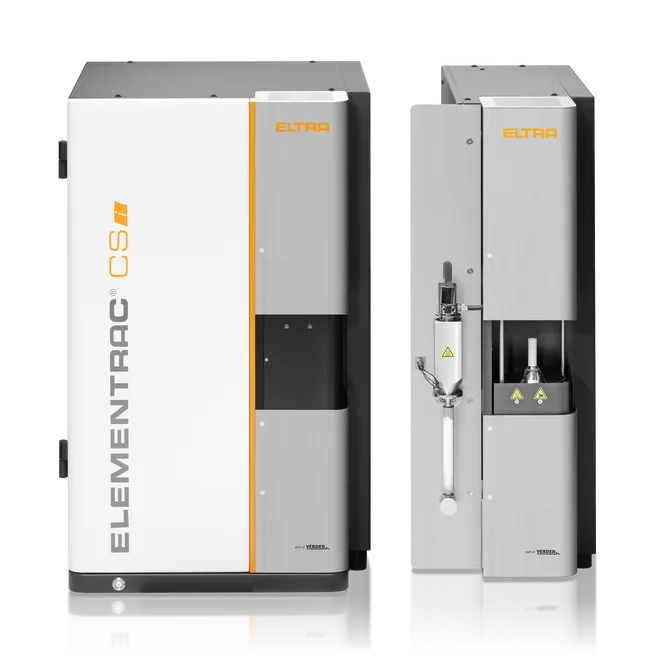

ELEMENTRAC CS-i: Carbon / Sulphur Analyser
Brand: Eltra | Category: Scientific & Laboratory Equipment
Induction furnace carbon and sulphur analyser for inorganic samples such as steel, cast iron, ores and ceramics. The sample is burned above 2,000 degrees Celsius in oxygen and the resulting carbon dioxide and sulphur dioxide are measured by solid state infrared absorption. A heated dust trap and a platinum based catalyst reactor handle the dusty combustion products that these materials produce.
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| Typical analysis time | 40 seconds (nominal) |
| Power requirements | 230 V, 50/60 Hz, max. 15 A, 3450 W |
| Dimensions (W x H x D) | 52 x 84 x 75 cm |
| Weight | ~ 150 kg |
Selected values from the manufacturer’s technical data for this product or explicitly named model variants. Measurement performance depends on the sample and configuration. Confirm the current model, utilities, accessories and acceptance criteria in the quotation. Checked 2026-09-29.
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Sample material, dimensions/quantity and required preparation or analysis result
- Measuring/working range, repeatability requirements and compatible accessories
- Utilities, calibration/reference materials, software and service scope
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Eltra equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
