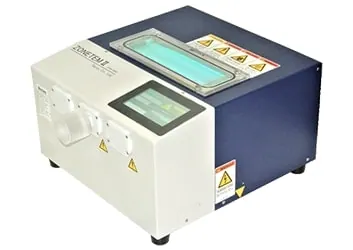

Sample Cleaner ZONETEM II
Brand: Hitachi High-Tech | Category: Scientific & Laboratory Equipment
The ZONETEM II is a desktop sample cleaner for TEM specimens. It uses vacuum controlled UV irradiation to remove hydrocarbon contamination from the sample surface before imaging, without the use of chemicals, supply gases or reagents.
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| Cleaning method | UV cleaning |
| UV wavelengths | 185 nm and 254 nm |
| Holder capacity | Up to 5 specimen holders |
| Programmable cleaning time | Up to 24 hours |
| Chamber condition | Variable-pressure operation |
Hitachi ZONETEM II data. Confirm holder adapters, sample compatibility and the approved cleaning procedure; ZoneSEM chamber dimensions must not be applied to this TEM-holder cleaner. Checked 2026-09-29.
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Intended application, sample/load and required working range
- Exact configuration, dimensions and compatible accessories/interfaces
- Site utilities, calibration/acceptance, training and service scope
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Hitachi High-Tech equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
