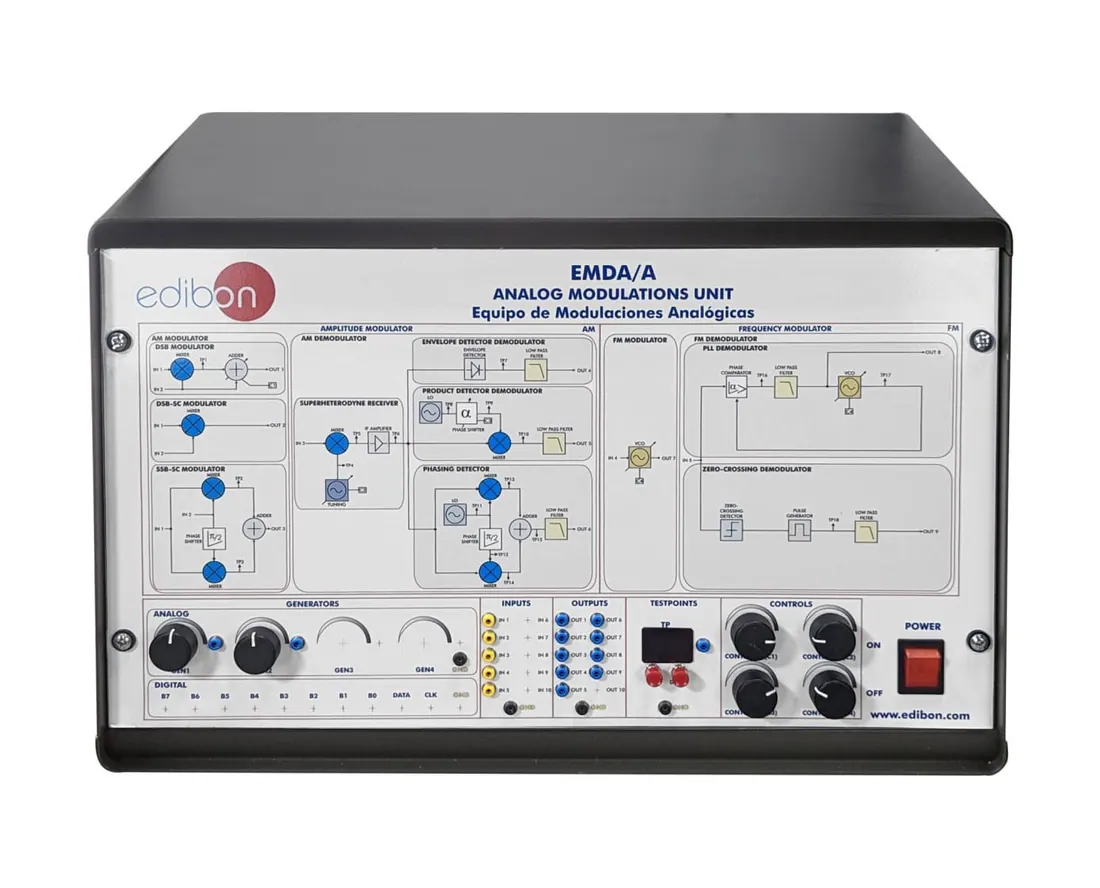

EMDA/A: Analog Modulations Unit
Brand: EDIBON | Category: Scientific & Laboratory Equipment
A bench unit for teaching analogue modulation and demodulation as used in modern communication systems. It covers amplitude modulation in double side band, double side band suppressed carrier and single side band suppressed carrier forms, together with frequency modulation.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | All elements mounted in a metallic box with power supply and block diagram |
| AM blocks | DSB, DSB-SC and SSB-SC modulators, RF tuning, IF mixer, IF amplifier |
| AM detectors | envelope detector and product detector |
| FM blocks | voltage controlled oscillator (VCO) and phase locked loop detector (PLL) |
| Specification | Five analog inputs, nine analog outputs, eighteen test points, two controls |
| Specification | Optional EDAS/VIS data acquisition and virtual instrumentation system |
