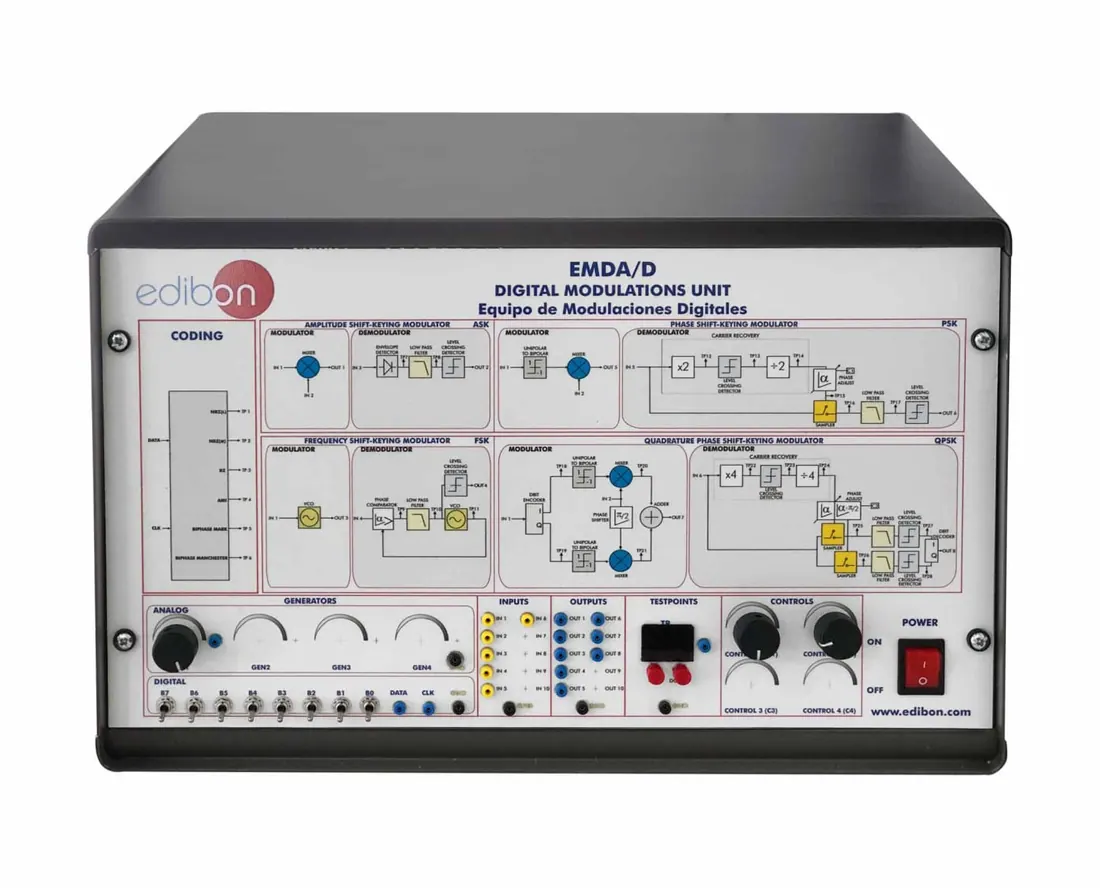

EMDA/D: Digital Modulations Unit
Brand: EDIBON | Category: Scientific & Laboratory Equipment
A bench unit for teaching digital modulation and line coding. It covers amplitude shift keying, frequency shift keying, phase shift keying and quadrature phase shift keying, and lets students compare line coding techniques such as NRZ, RZ, RB and AMI.
Technical Specifications
| Parameter | Value |
|---|---|
| Line coding circuits | NRZL, NRZM, biphase Manchester, biphase mark, RZ, RB and AMI |
| Modulators and demodulators | ASK, FSK, PSK and QPSK |
| Specification | Carrier recovery circuit with multiplier, divider, squarer and VCO |
| Specification | Analog carrier generator and digital generator of one byte, 8 bits serial |
| Specification | Six analog inputs, eight analog outputs, twenty eight test points, two controls |
| Specification | Optional EDAS/VIS data acquisition and virtual instrumentation system |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about EDIBON equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
