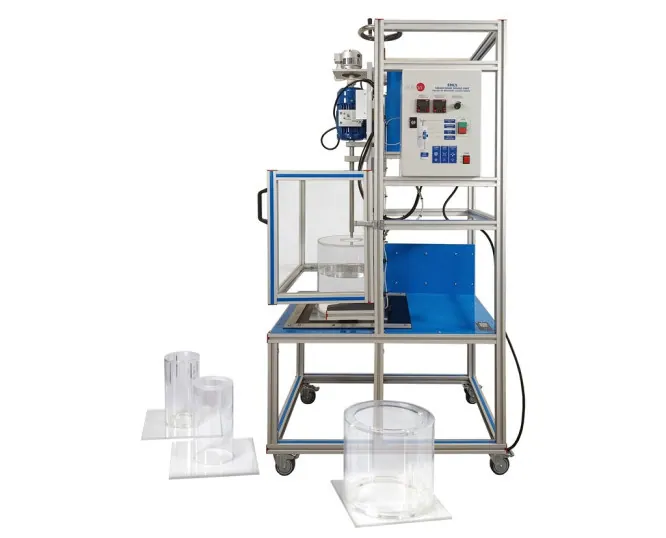

EMLS: Liquid/Solid Mixing Unit
Brand: EDIBON | Category: Scientific & Laboratory Equipment
A mixing rig with a variable speed motor and mechanical fittings that accept a range of interchangeable agitators. It is used to study the mixing of liquids and solids, including power consumption, impeller choice, baffling and the time needed to reach a uniform mixture.
Technical Specifications
| Parameter | Value |
|---|---|
| Crowbar | 18.3 cm |
| Two blades agitators, diameters | 100 mm and 50 mm |
| Two propeller agitators, diameters | 100 mm and 50 mm |
| Two turbine agitators, diameters | 100 mm and 50 mm |
| Specification | Tank of 300 mm diameter and 300 mm height, with deflectors |
| Electrical supply | single-phase 200 VAC to 240 VAC/50 Hz or 110 VAC to 127 VAC/60 Hz |
