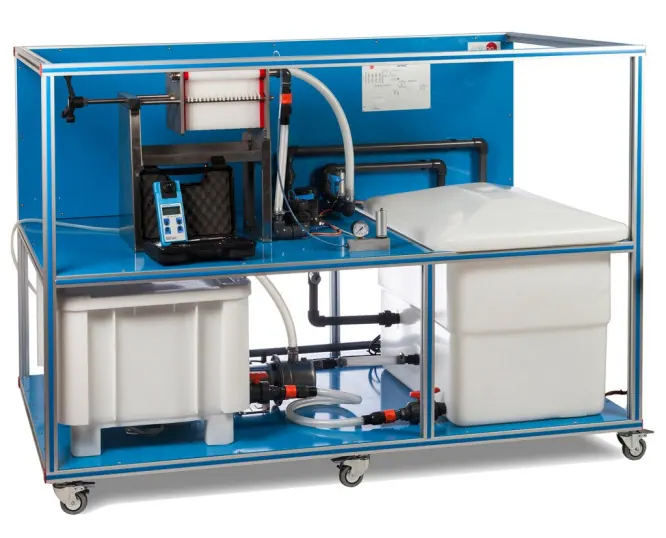

AFPMC: Computer Controlled Plate and Frame Filter Press
Brand: EDIBON | Category: Scientific & Laboratory Equipment
A plate and frame filter press in which the number of frames and the type of filter cloth can be changed. A suspension is pumped through the press so that students can study filtration and clarification, cake washing and the pressure and flow relationship.
Technical Specifications
| Parameter | Value |
|---|---|
| Maximum working pressure | 2.5 bar |
| Suspension tank made of polyethylene. Capacity | 250 l |
| Max. volumetric flow rate | 60 l/min |
| Filtrate tank made of polyethylene. Capacity | 140 l |
| Three pressure sensors, range | 0 to 30 psi |
| Electrical supply | single-phase 200 VAC to 240 VAC/50 Hz or 110 VAC to 127 VAC/60 Hz |
