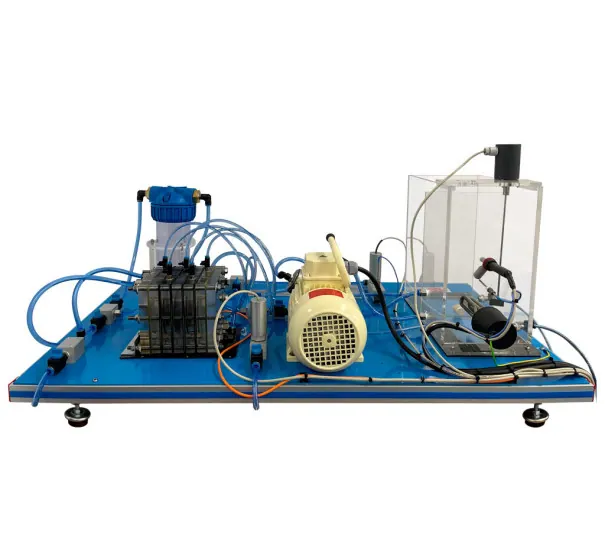

TFUC: Computer Controlled Continuous and Batch Filtration Unit
Brand: EDIBON | Category: Scientific & Laboratory Equipment
A filtration unit that carries two different filters, a vertical nylon plate filter and a second filter element, so batch and continuous filtration can be compared. Students measure filtrate rate against time and study cake build up and filter medium resistance.
Technical Specifications
| Parameter | Value |
|---|---|
| Double tank made of methacrylate, capacity | 9 l |
| Computer controlled heating element, power | 500 W |
| Two pressure sensors, range | 0 to 6 bar |
| Flow sensor, range | 0.1 to 25 l/min |
| Specification | Computer controlled centrifugal pump, max 4 bar |
| Electrical supply | single-phase 200 VAC to 240 VAC/50 Hz or 110 VAC to 127 VAC/60 Hz |
