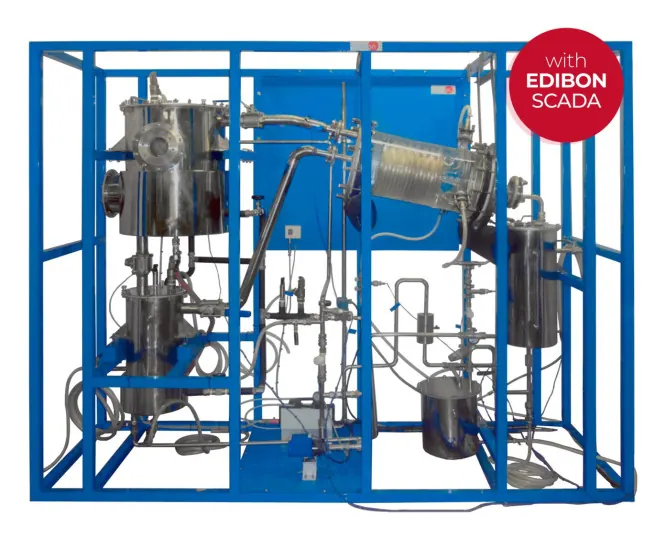

QEDC: Computer Controlled Batch Solvent Extraction and Desolventising Unit
Brand: EDIBON | Category: Scientific & Laboratory Equipment
A batch unit for solid and liquid extraction that is particularly suited to recovering oil from oily seeds and then desolventising the meal. Students follow both the extraction and the solvent stripping stages and measure the oil recovered.
Technical Specifications
| Parameter | Value |
|---|---|
| Volume of solvent store | 16 l |
| Vacuum pump | Type: double PTFE diaphragm. Operating pressure: 100 mbar (max) |
| Direct steam | 0 to 0.9 bar. Indirect steam: 0 to 3.5 bar |
| Specification | Electronic solenoid valve and a pressure switch (4 bar) |
| Cylindrical vessel of stainless steel equipped with a level viewer. Volume of separator section | 16 l |
| Electrical supply | single-phase 200 VAC to 240 VAC/50 Hz or 110 VAC to 127 VAC/60 Hz |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about EDIBON equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
