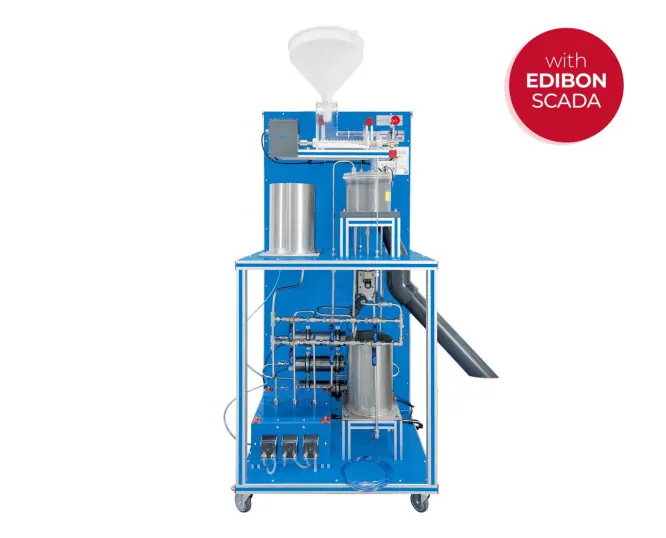

UESLC: Computer Controlled Solid-Liquid Extraction Unit
Brand: EDIBON | Category: Scientific & Laboratory Equipment
A continuous multistage extraction unit that removes a soluble fraction from a solid using a solvent in countercurrent flow. It teaches leaching, stage calculations and solvent recovery, and lets students study the effect of solvent rate on extraction yield.
Technical Specifications
| Parameter | Value |
|---|---|
| Three safety thermostats | 70 °C |
| Feed liquid vessel, capacity | 9 l |
| Product liquid vessel, capacity | 9 l |
| Dimensions | 705 x 570 x 1680 mm approx |
| Weight | 100 kg approx |
| Electrical supply | single-phase 200 VAC to 240 VAC/50 Hz or 110 VAC to 127 VAC/60 Hz |
