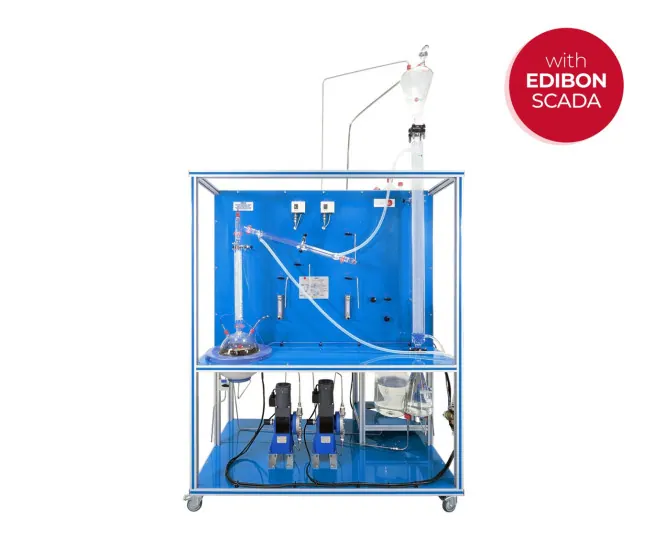

UELLC: Computer Controlled Liquid-Liquid Extraction Unit
Brand: EDIBON | Category: Scientific & Laboratory Equipment
A laboratory scale column for separating the components of a liquid mixture by contacting it with an immiscible solvent. Students measure the distribution of solute between the phases, determine stage efficiency and study the effect of flow ratio on recovery.
Technical Specifications
| Parameter | Value |
|---|---|
| Internal diameter | 50 mm |
| Internal diameter | 25 mm |
| Two enlargement pieces at the ends, capacity | 2 l |
| Computer controlled electrical heating mantle, power | 800 W |
| Flowmeter for acetic acid 4%, range | 0 to 48 l/h |
| Electrical supply | single-phase, with ground, 200 VAC to 240 VAC/50 Hz or 110 VAC to 127 VAC/60 Hz |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about EDIBON equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
