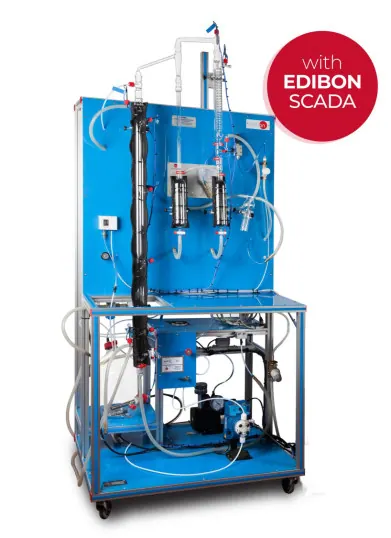

EPAC: Computer Controlled Rising Film Evaporator
Brand: EDIBON | Category: Scientific & Laboratory Equipment
A rising film evaporator used to concentrate a non-volatile solute by evaporating water from the feed. The design suits heat sensitive products because contact time is short, and students can measure evaporation capacity, steam economy and product concentration.
Technical Specifications
| Parameter | Value |
|---|---|
| Three tanks, capacity | 10 l (for feeding, concentrated and evaporated) |
| Flow sensor, range | 0.2 to 6.5 l/min |
| Two pressure sensors, range | 0 to 2 bar |
| Specification | Single effect vacuum pump, computer controlled, maximum flow 3 m³/h and maximum vacuum |
| Specification | Coil coolant with length of 400 mm |
| Electrical supply | single-phase 200 VAC to 240 VAC/50 Hz or 110 VAC to 127 VAC/60 Hz |
