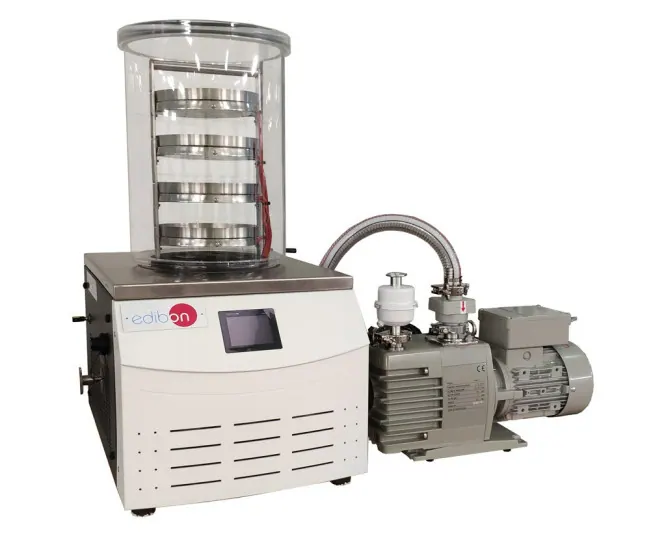

BLIO: Freeze Dryer
Brand: EDIBON | Category: Scientific & Laboratory Equipment
A freeze dryer that carries out lyophilisation inside a transparent chamber, with control of chamber pressure and of the heated trays. Students follow the freezing, primary drying and secondary drying stages and measure the moisture removed from the product.
Technical Specifications
| Parameter | Value |
|---|---|
| Diameter of the trays | 200 mm |
| Maximum capacity of the condenser | 6 kg |
| Condenser final temperature | - 55 °C |
| Total electrical power | 1400 W |
| Electrical supply | single-phase 200 VAC to 240 VAC/50 Hz or 110 VAC to 127 VAC/60 Hz |
