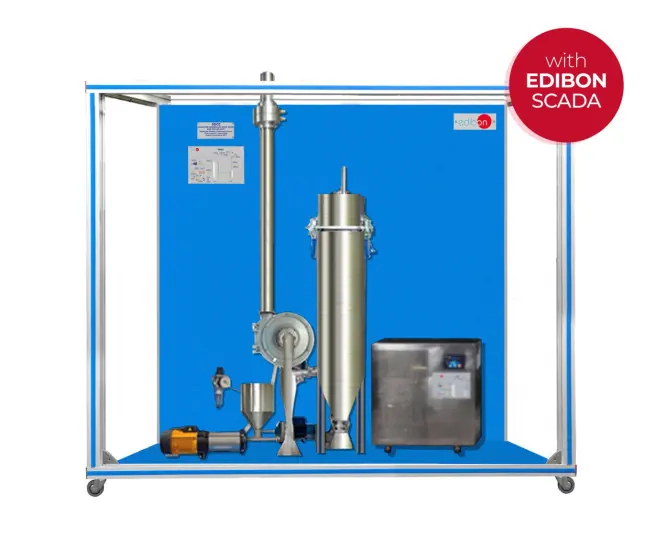

SDCC: Computer Controlled Spray Dryer and Chiller Unit
Brand: EDIBON | Category: Scientific & Laboratory Equipment
A unit that combines spray drying and spray chilling in one chamber, so liquids can be turned into powders either by evaporating the solvent or by solidifying a melt. It allows the two operating modes to be compared on the same feed material.
Technical Specifications
| Parameter | Value |
|---|---|
| Drying air temperature | 50 - 250 °C |
| Air temperature | 2 °C |
| Evaporation rate | 1.5 - 3 l/h |
| Particle size | 20 - 120 microns |
| Specification | Maximum flow up to 7 l/h |
| Electrical supply | single-phase 200 VAC to 240 VAC/50 Hz or 110 VAC to 127 VAC/60 Hz |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about EDIBON equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
Back to Scientific & Laboratory Equipment
More from Unit Operations Lab
- BLIO: Freeze Dryer
A freeze dryer that carries out lyophilisation inside a transparent chamber, with control of chamber pressure and of the heated trays. Students follow the freezing, primary drying and secondary drying stages and measure the moisture removed from the product.
- SSPC: Computer Controlled Spray Drier
A spray drier for producing powders from aqueous emulsions, solutions, suspensions and colloids. A peristaltic pump feeds the liquid to a nozzle in the drying chamber, so students can relate inlet temperature, feed rate and atomisation to powder yield and moisture.
- EPAC: Computer Controlled Rising Film Evaporator
A rising film evaporator used to concentrate a non-volatile solute by evaporating water from the feed. The design suits heat sensitive products because contact time is short, and students can measure evaporation capacity, steam economy and product concentration.
