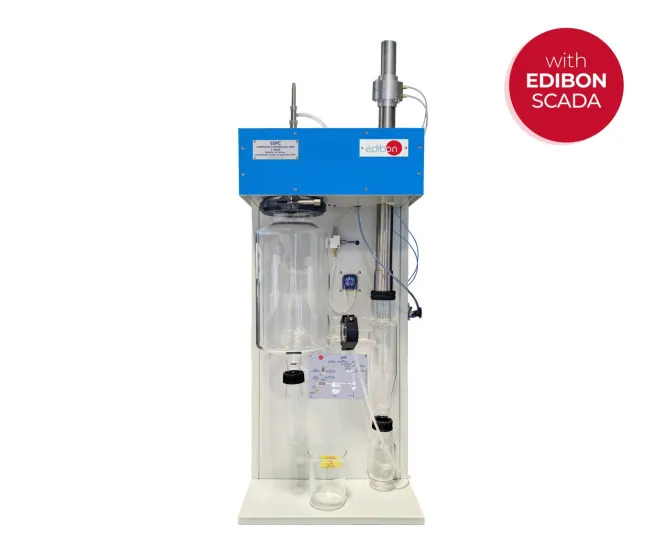

SSPC: Computer Controlled Spray Drier
Brand: EDIBON | Category: Scientific & Laboratory Equipment
A spray drier for producing powders from aqueous emulsions, solutions, suspensions and colloids. A peristaltic pump feeds the liquid to a nozzle in the drying chamber, so students can relate inlet temperature, feed rate and atomisation to powder yield and moisture.
Technical Specifications
| Parameter | Value |
|---|---|
| Maximum drying capacity | 1000 ml/h approx |
| Temperature range | 40 - 200 ºC (temperature at inlet) |
| Dry air volume range | 0.2 - 0.65 m³/min |
| Feed pump volume range | 102 - 1800 ml/h approx |
| Maximum air pressure | 70 mbar |
