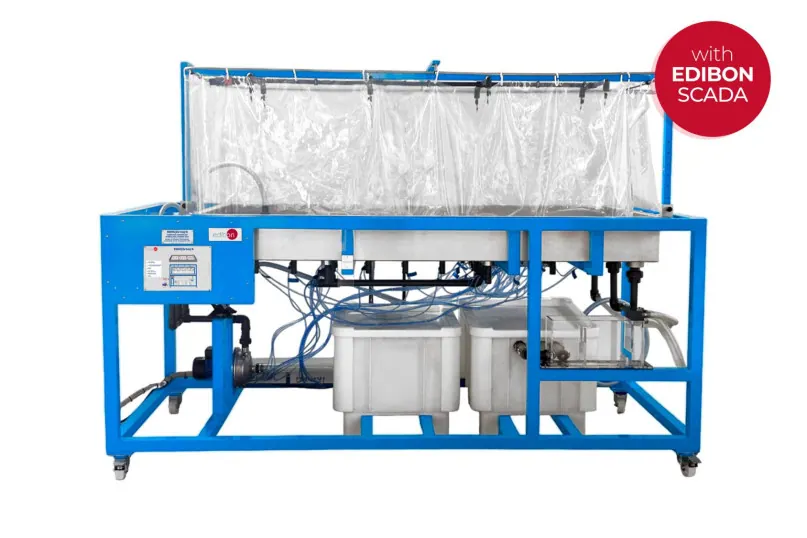

ESHC(2x1m)/S: Computer Controlled Hydrologic Studies Unit
Brand: EDIBON | Category: Scientific & Laboratory Equipment
A stand alone unit for advanced study of hydrological processes in ground and river environments. A sand filled test tank is served by rainfall and inflow systems, so students can run catchment, runoff, groundwater and channel experiments on a 2 by 1 m working area.
Technical Specifications
| Parameter | Value |
|---|---|
| Max. pressure | 2 bar |
| Max. flow rate | 2000 l/h |
| Flow rate measurement, flow sensor | 0 to 1700 l/h |
| Drainage flow measurement, measuring weir | 0 to 1700 l/h |
| Depth | 0,2 m |
| Electrical supply | three-phase, 380 VAC to 400 VAC/50 Hz or 190 VAC to 240 VAC/60 Hz, 1 kW |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about EDIBON equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
